SDLUTV200
| Overall length | 2600mm | Transmission | CVT automatic with Neutral and Reverse |
| Overall width | 1350mm | Spark Plug / Gap | C7HSA /CR7HSA (NGK) / 0.6 – 0.7 mm |
| Overall height | 1600mm | Fuel Type | Only use mid‐grade unleaded (89‐93 Octane) |
| Wheel base | 1830mm | Front Tire | 22 x 7 – 10 @ 15 psi |
| Ground clearance | 160mm | Rear Tire | 22 x 10 – 10 @ 15 psi |
| Basic weight | 280kg | Front Brakes | Hydraulic Disc Brake |
| Total Vehicle Weight Capacity (including passenger) | 580kg | Rear Brake | Hydraulic Disc Brake |
| Type | Single cylinder、 Air & cooled、 4 stroke | Front Suspension | Dual A‐Arm |
| Engine Model | 161QMK-A | Rear Suspension | Spring over shock with 2.0” of travel |
| Engine Displacement | 168.9cc | Dry Weight | 700 Lbs |
| Bore x Stroke | 61*57.8 | Maximum Bed Load | 150 Lbs |
| Carburetor | PD24J | Climbing Angle | 15‐20 Degree |
| Output Power | 8Kw @ 7500 rpm | Fuel Tank | 10 L / 2.6 Gal |
| Starting | Keyed Electric | Engine Oil | 36 Oz |
| Ignition | CDI | Battery | 12 V10 AH |
| Lubrication | SAE 10W/40 | Top Speed | 34‐40 MPH |

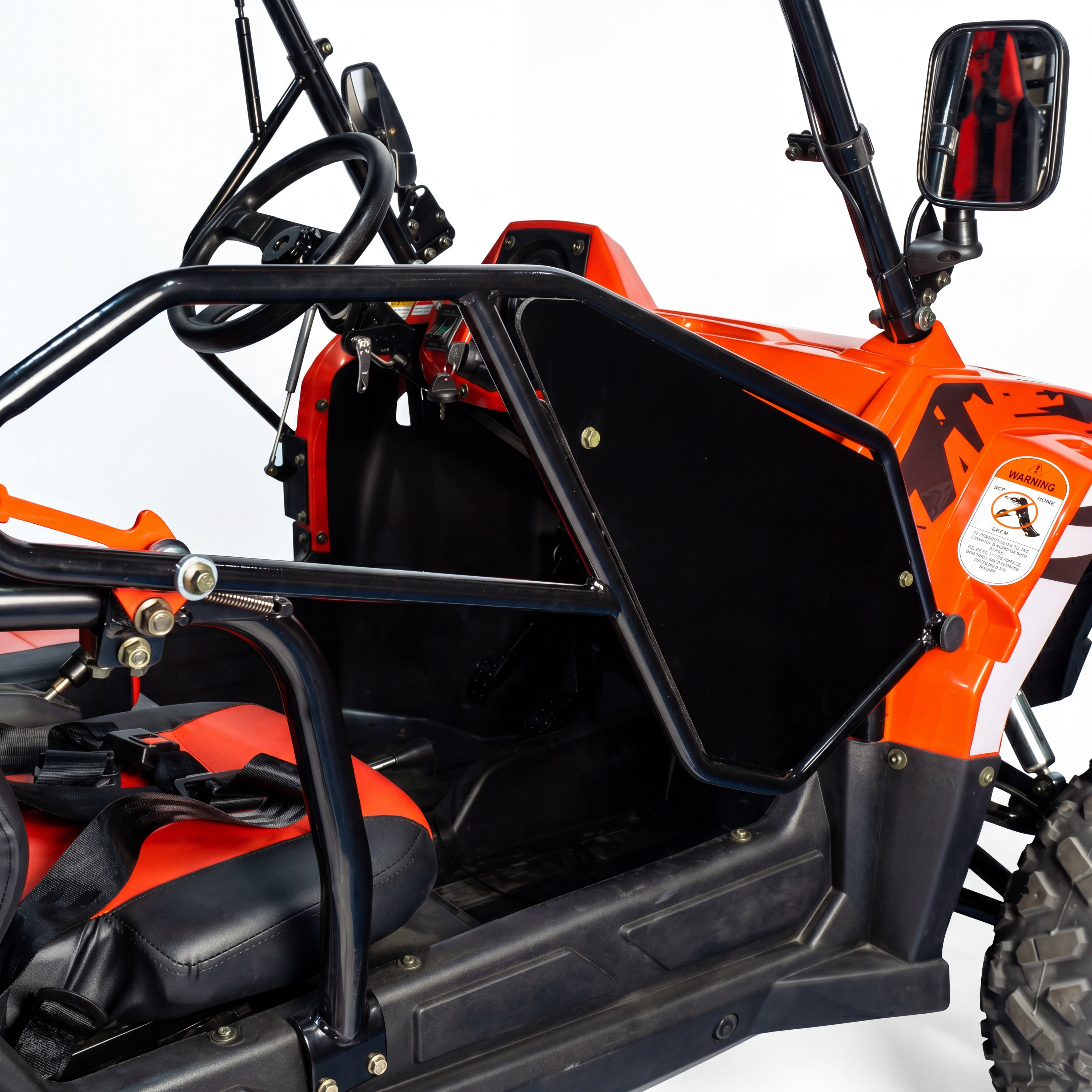

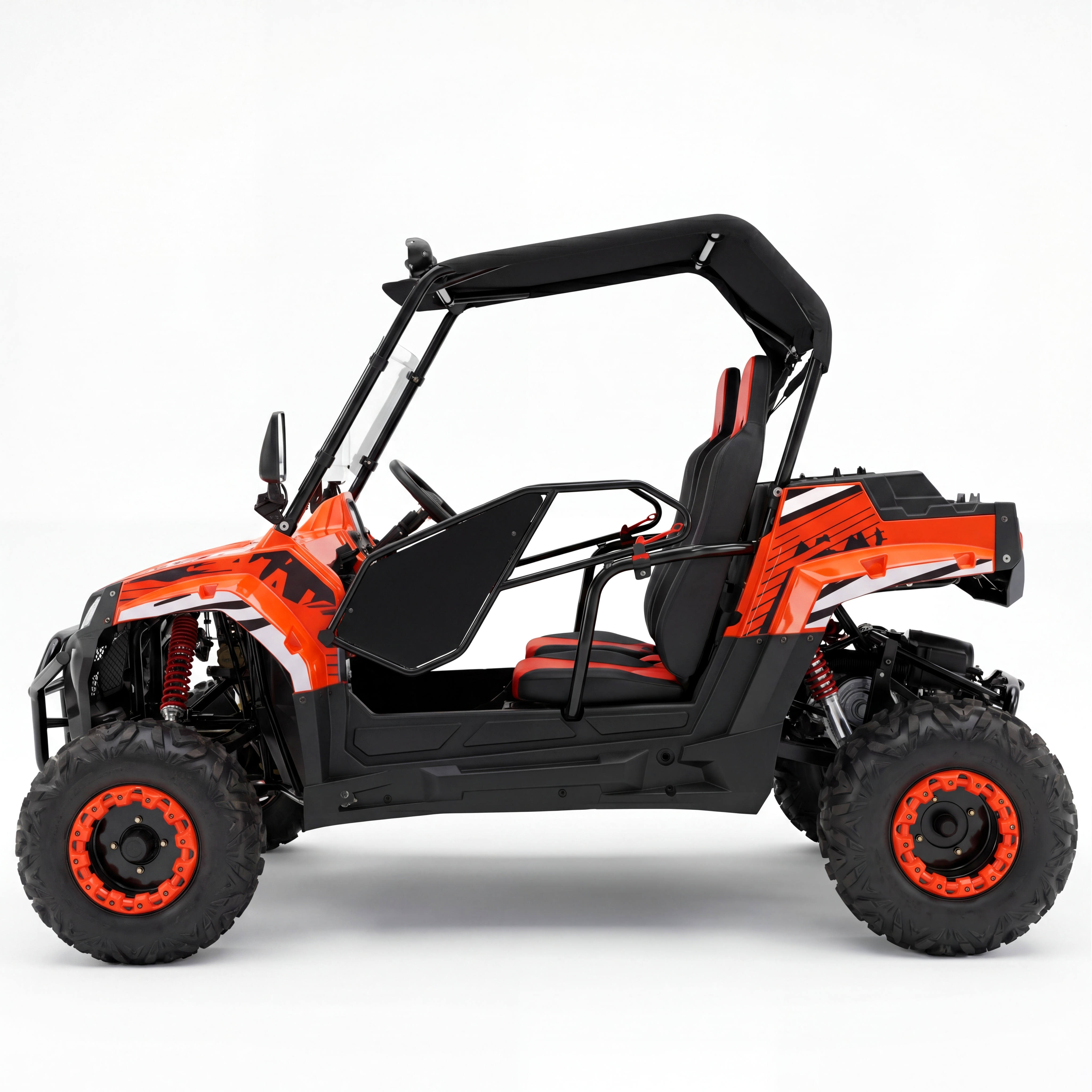

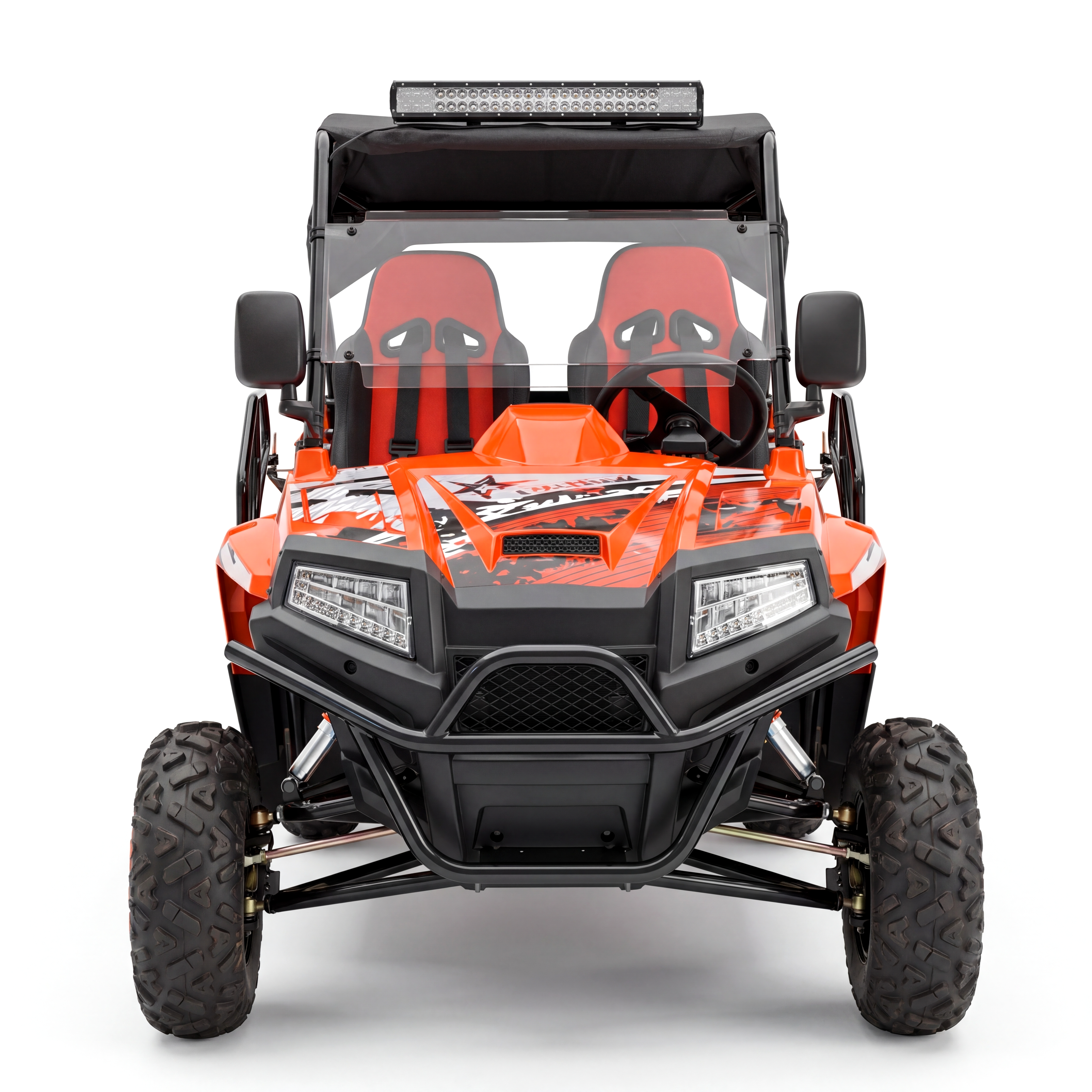

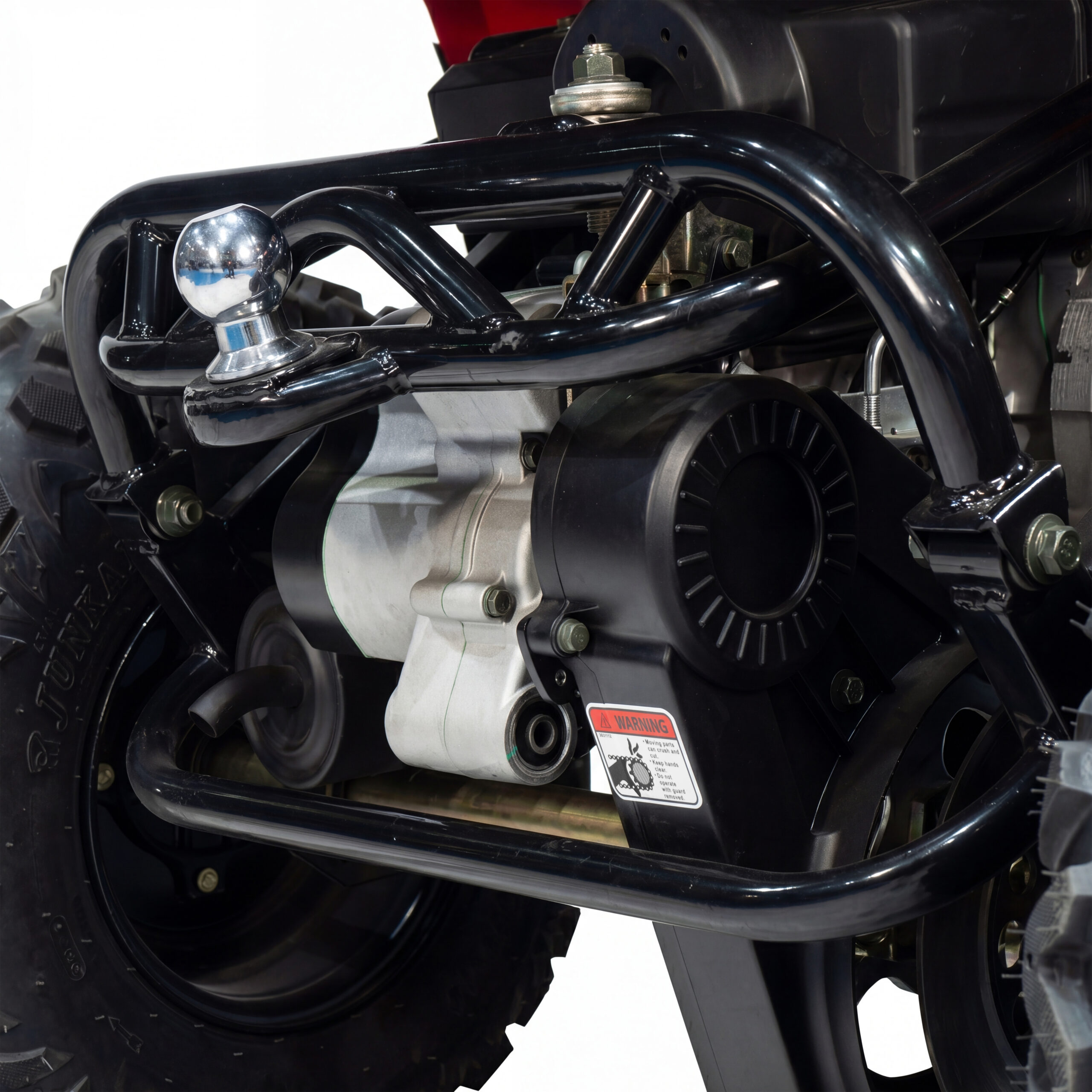

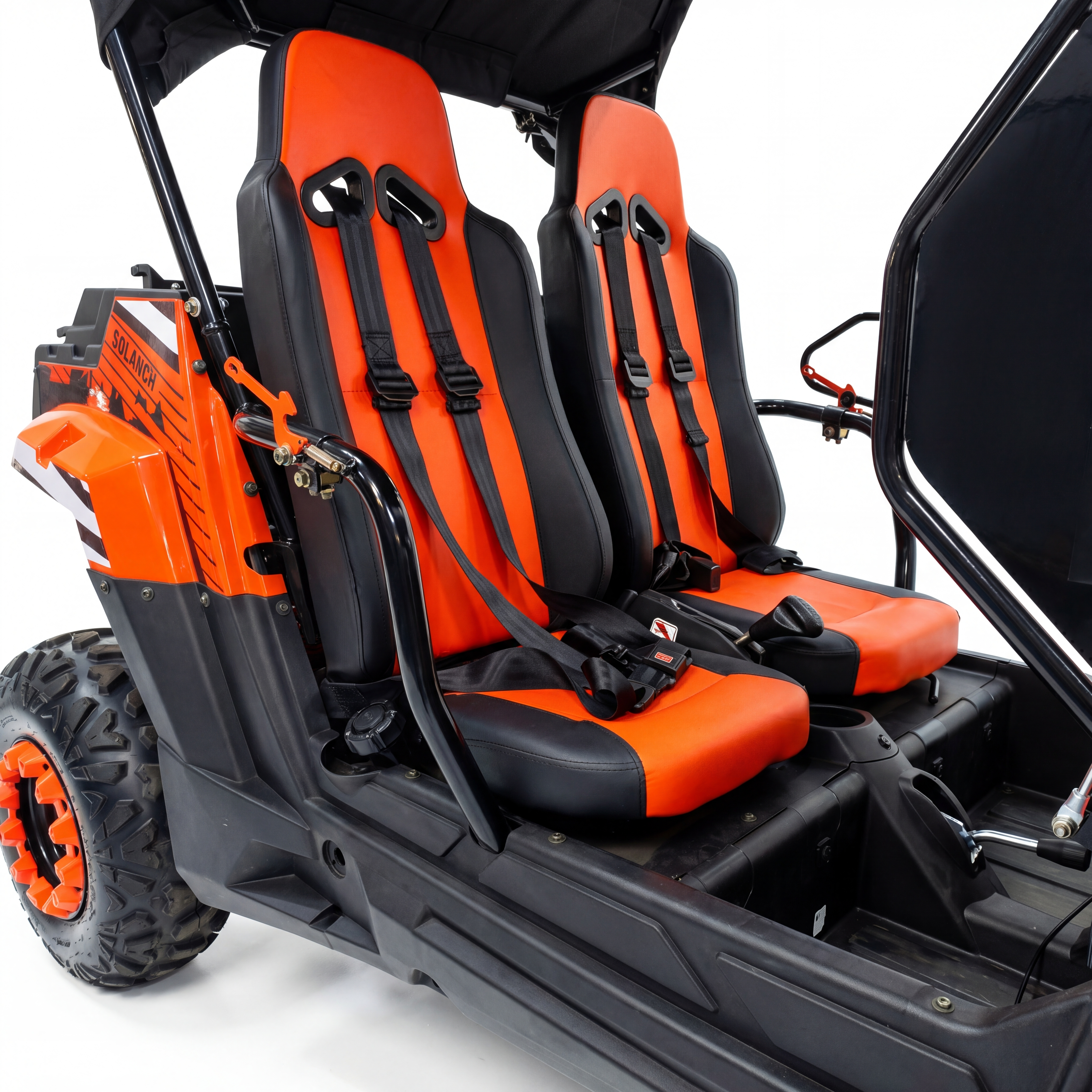

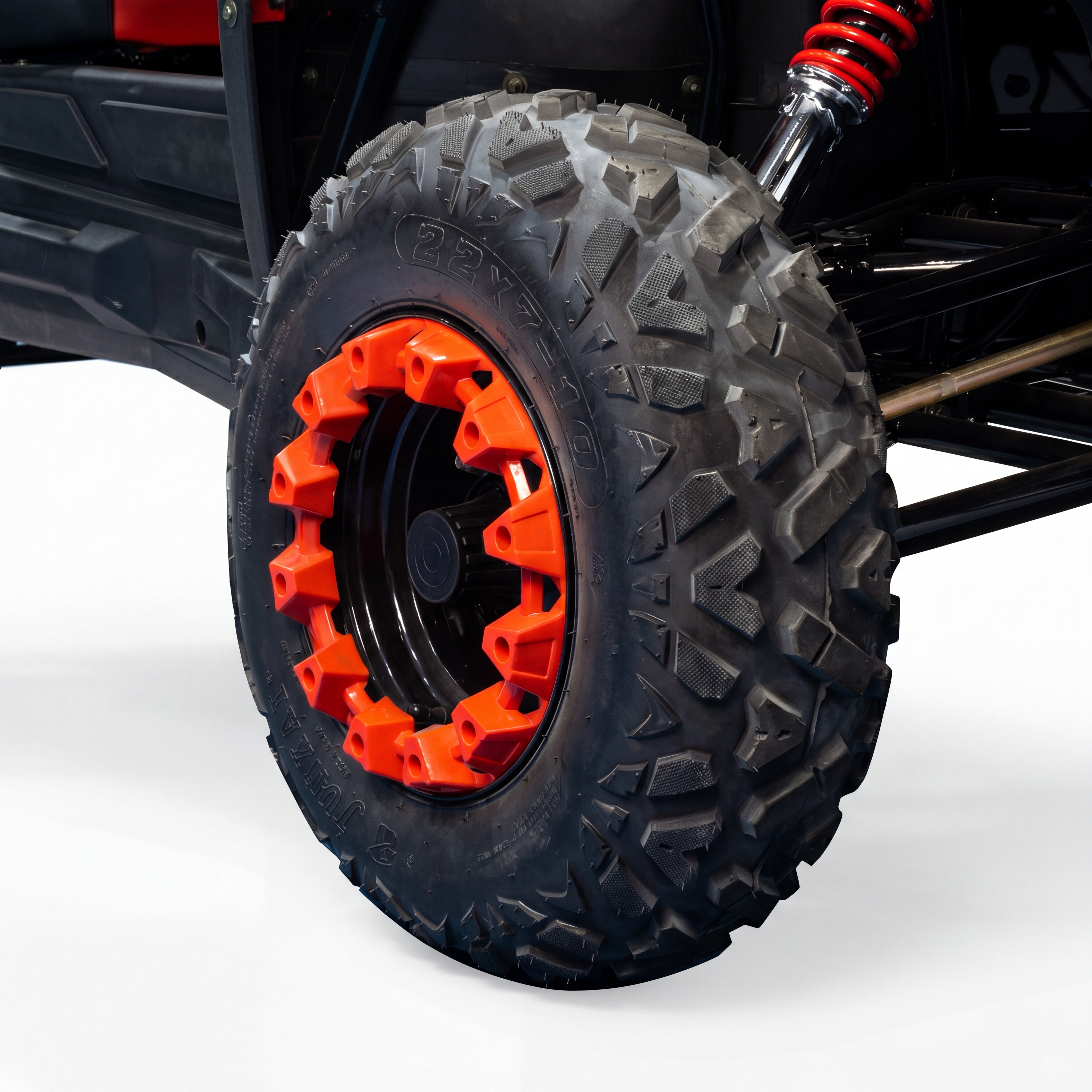

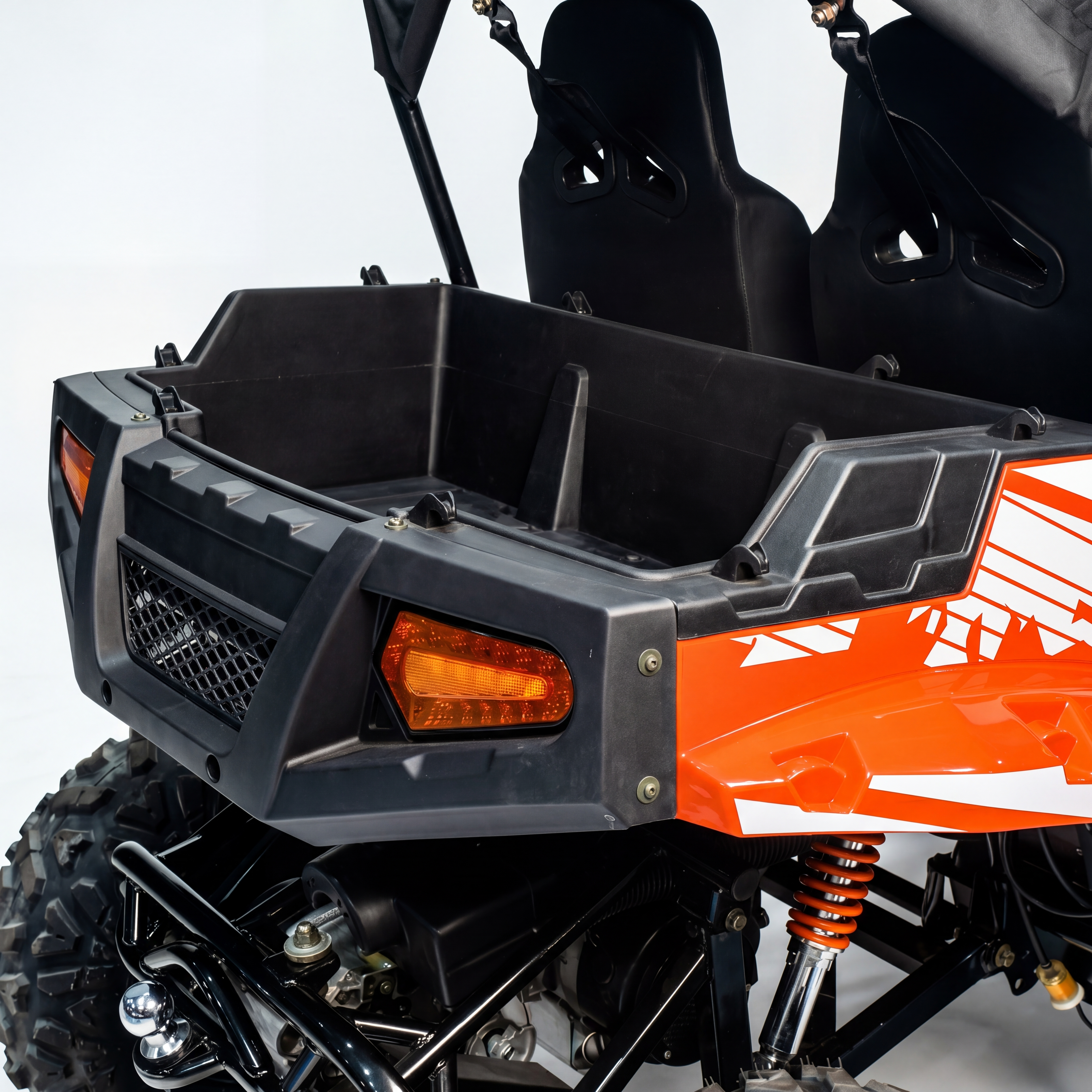

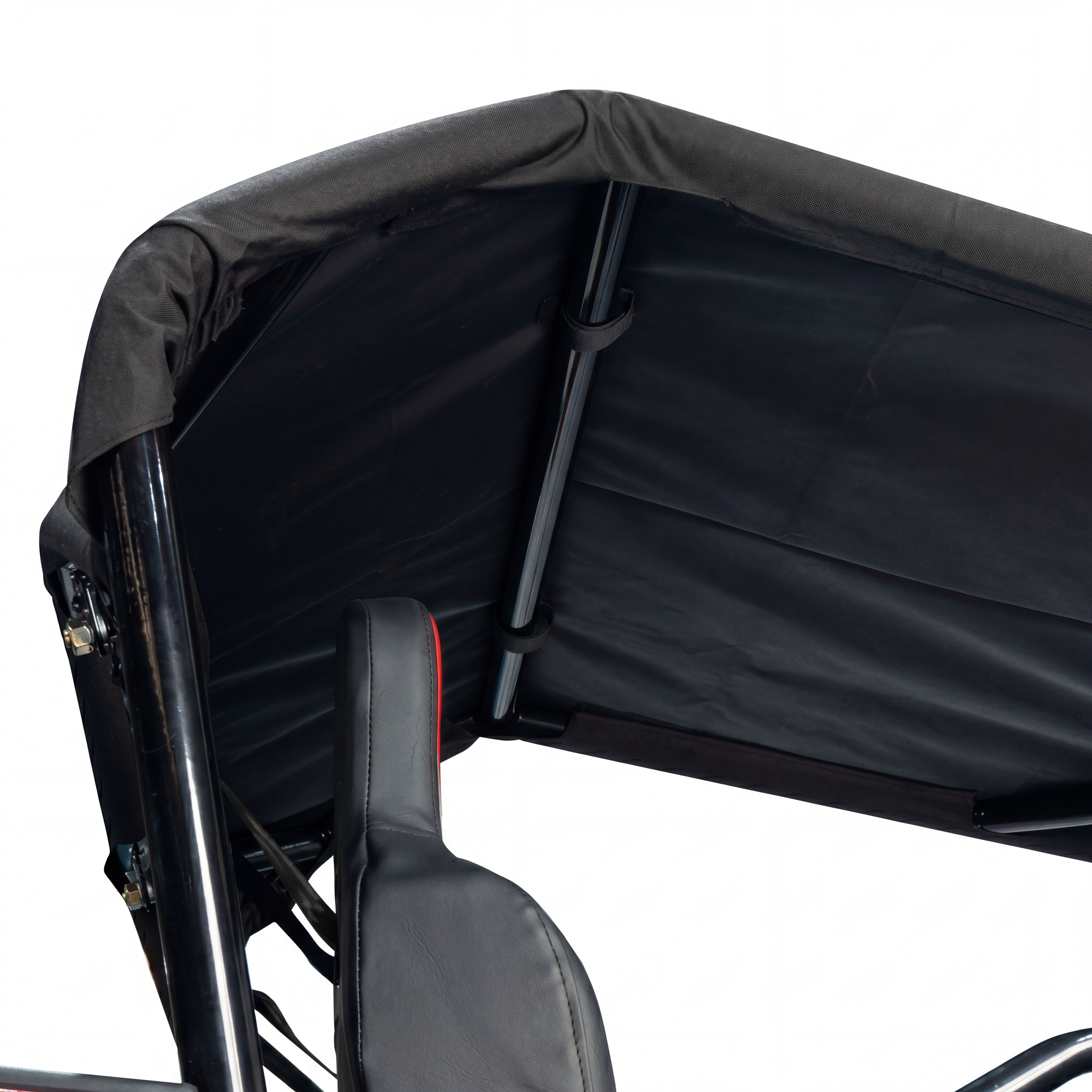

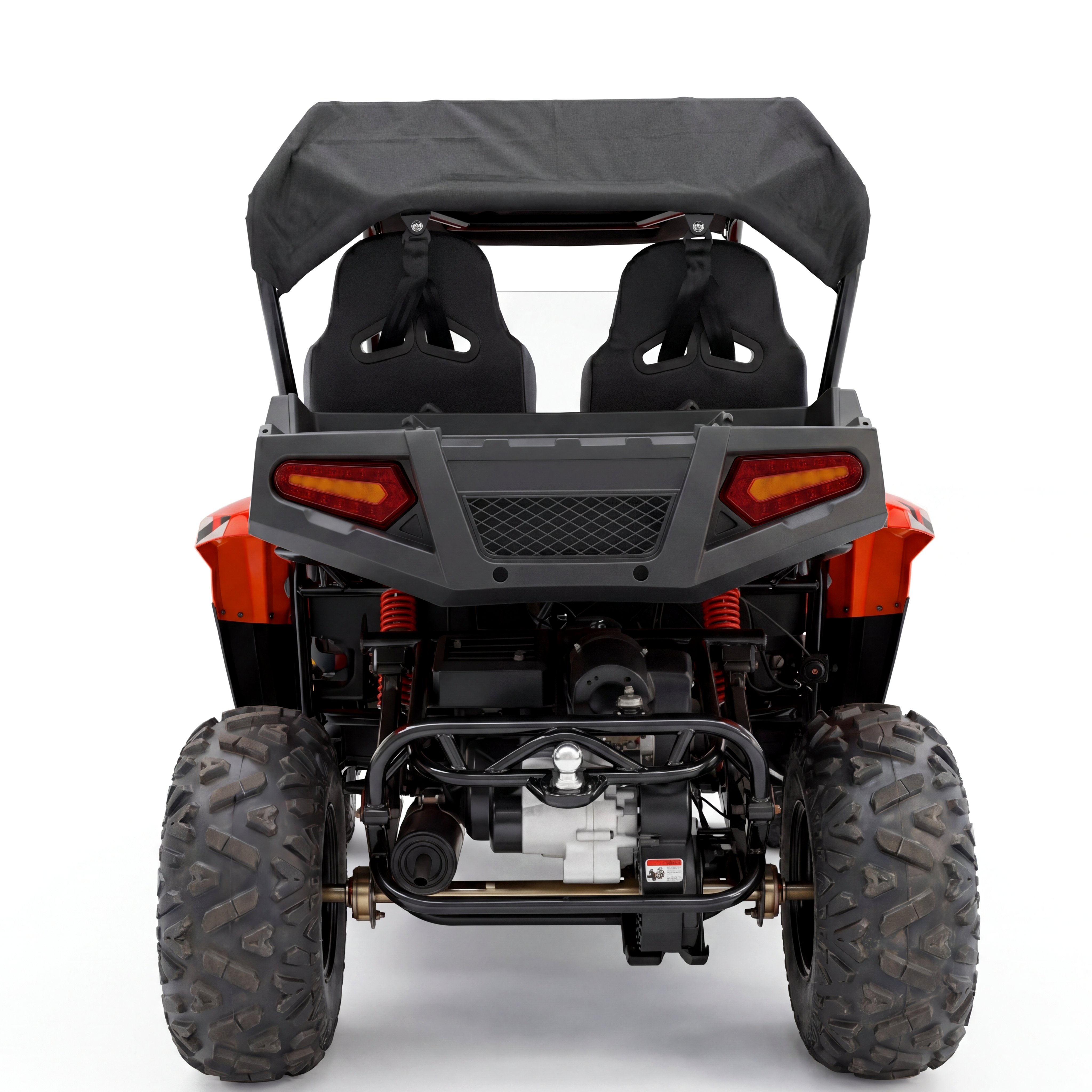

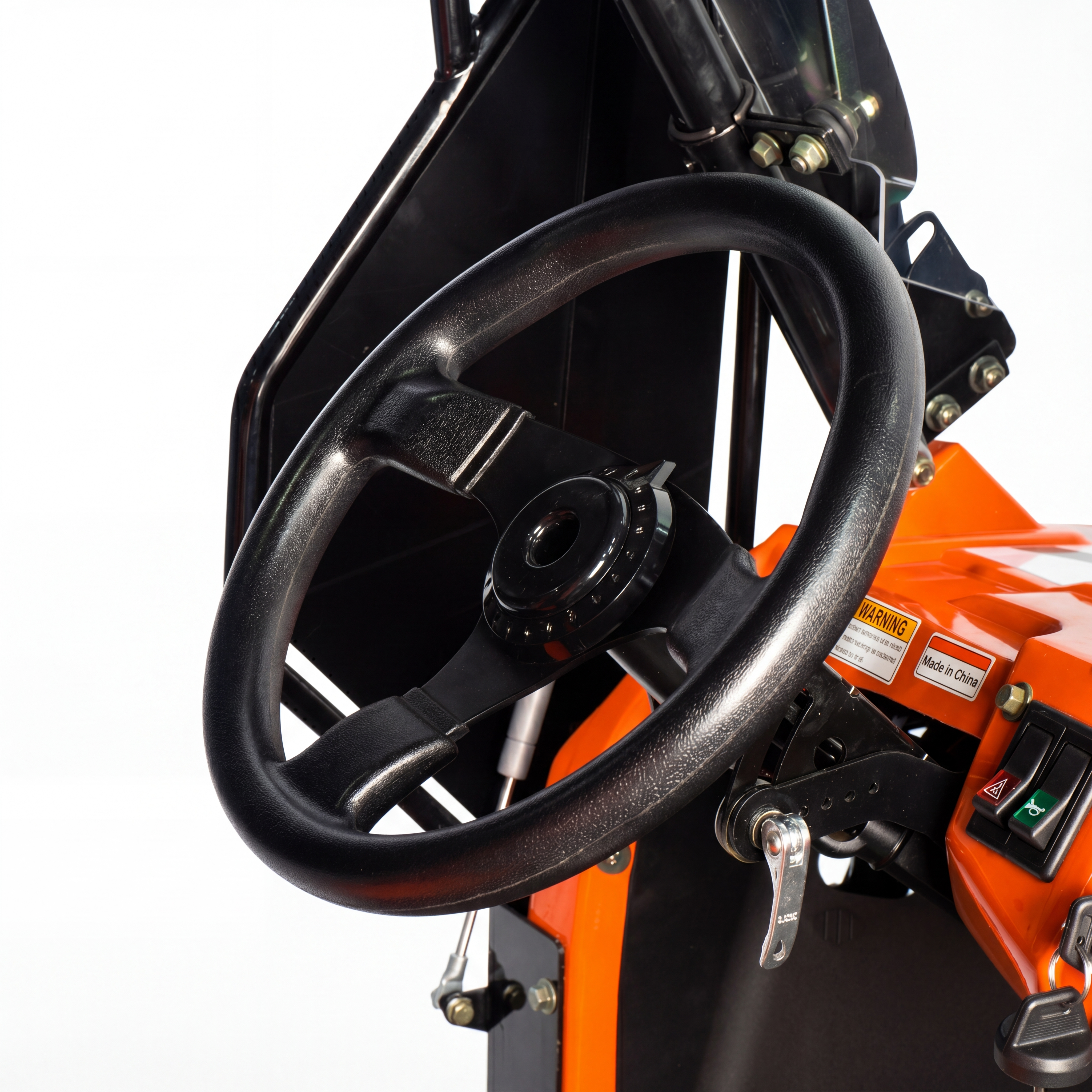

Product Gallery
