SDLRR1500
| Operating Weight | 860KG | Engine Power | 8.5kw / 3600r/min |
| Excitation Force (Centrifugal Force) | 30KN | Drive Type | Fully Hydraulic Drive |
| Nominal Amplitude | 0.6MM | Vibration Type | Hydraulic Vibration |
| Vibration Frequency | 75HZ | Engine Oil Capacity | 1.1L |
| Travel Speed | 0-15KM/H | Fuel Type | Gasoline |
| Gradeability | 30% | Fuel Grade | #92 Gasoline |
| Overall Dimensions | 2000*950*1600(MM) | Fuel Tank Capacity | Engine-integrated tank / 6.5L |
| Drum Dimensions | Width: 800, Diameter: 560; Front & Rear Double Drums | Water Tank Capacity | 55L |
| Engine Model | Rato R420 | Hydraulic Oil Tank Capacity | 12L |
| Emission Standard | EPA / EURO 5 |

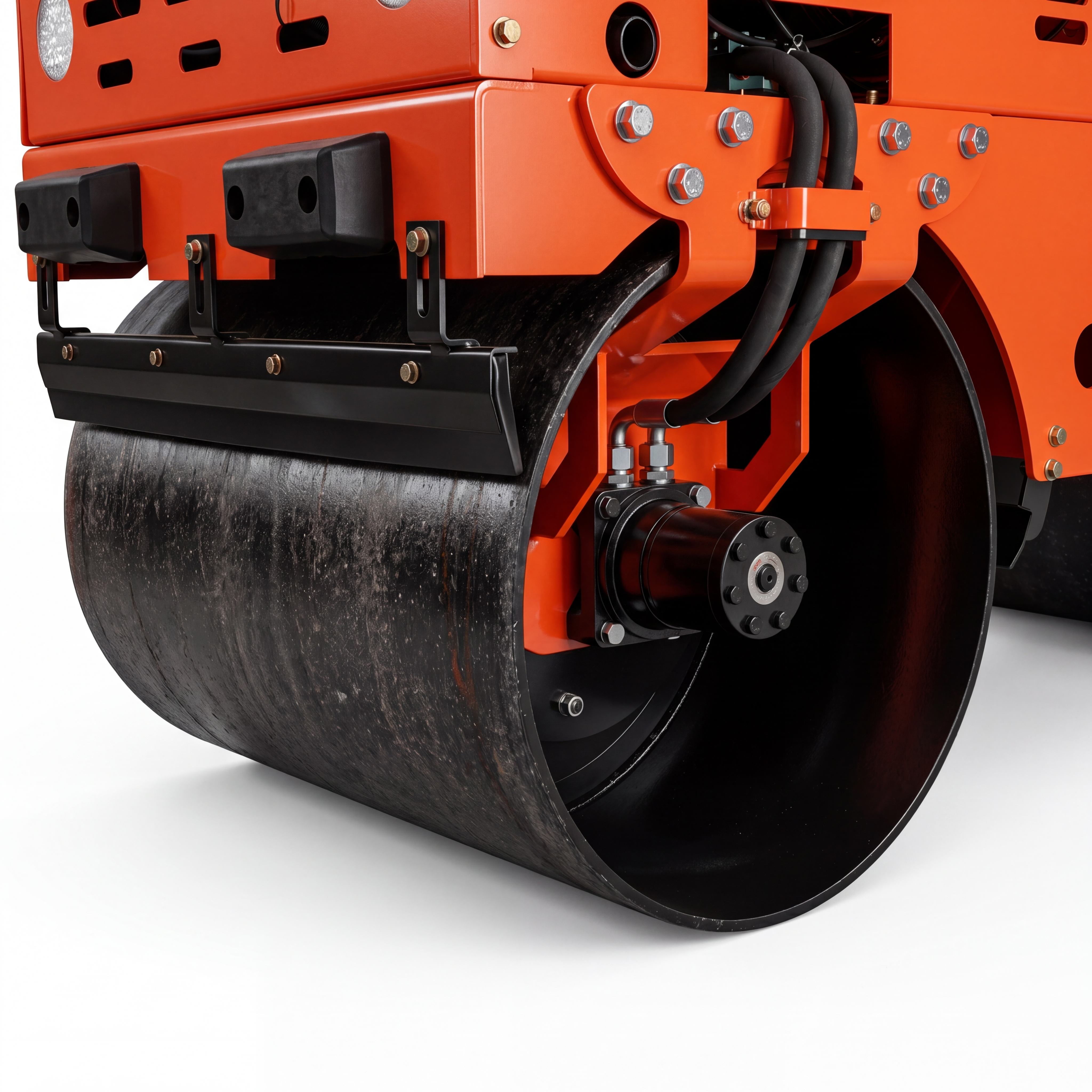

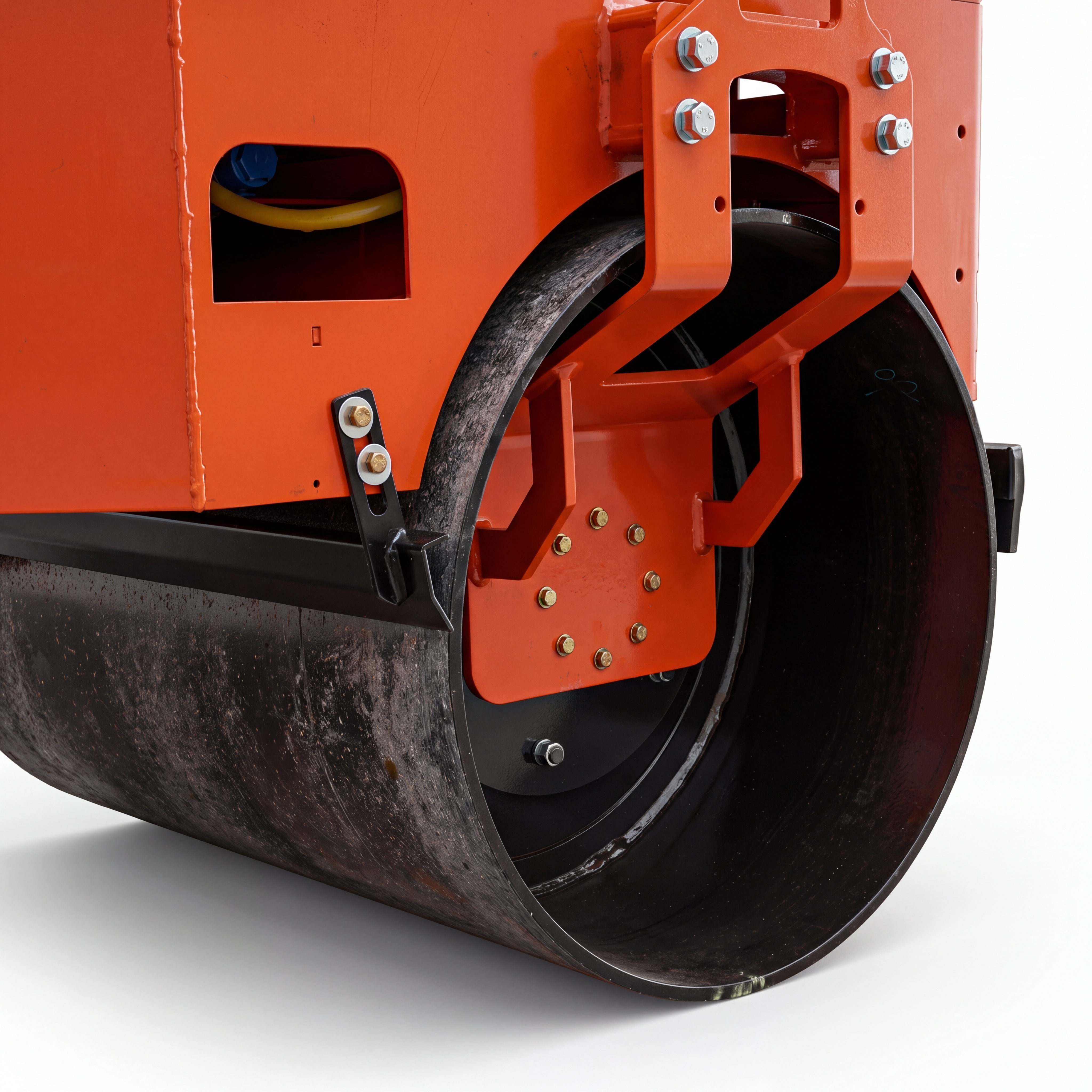

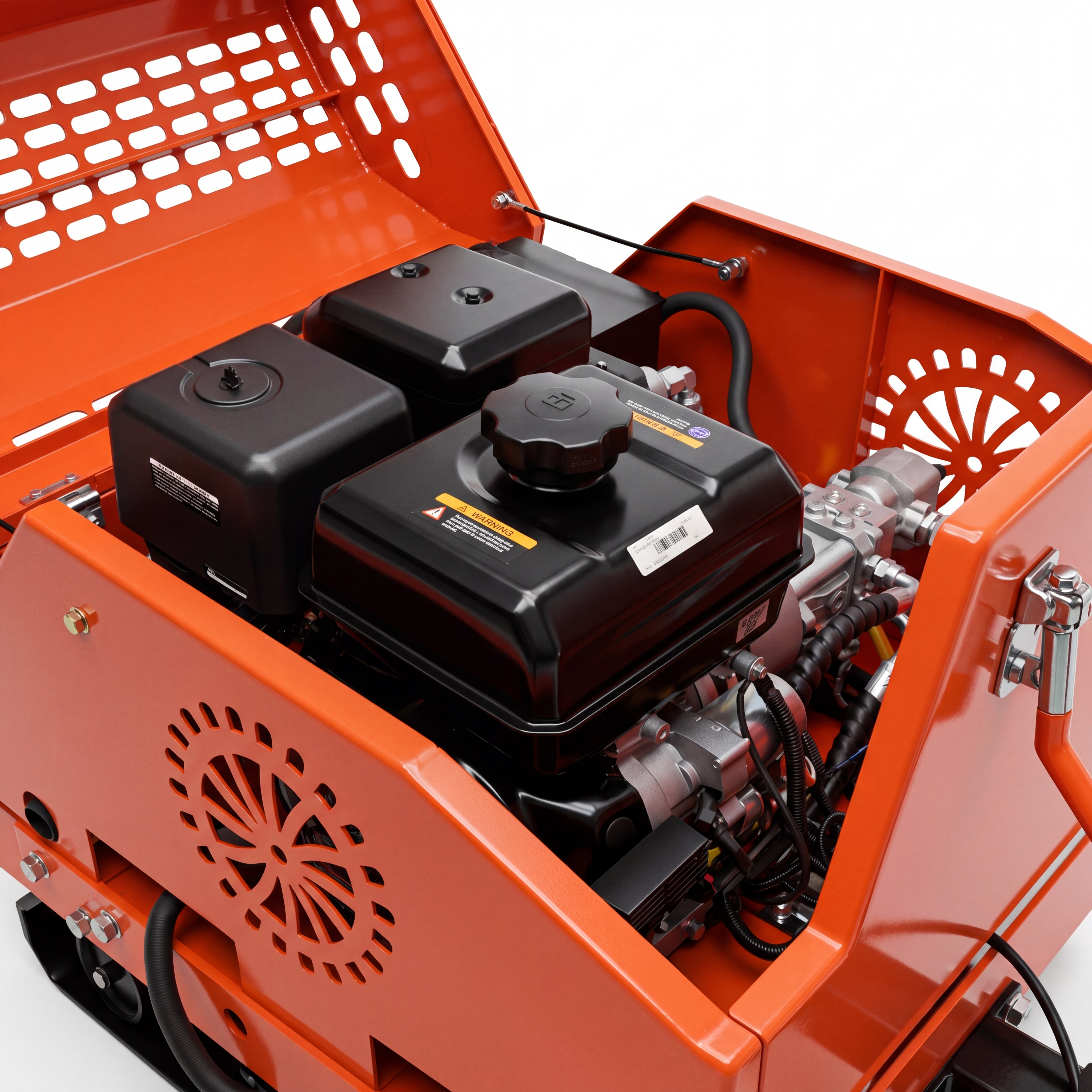

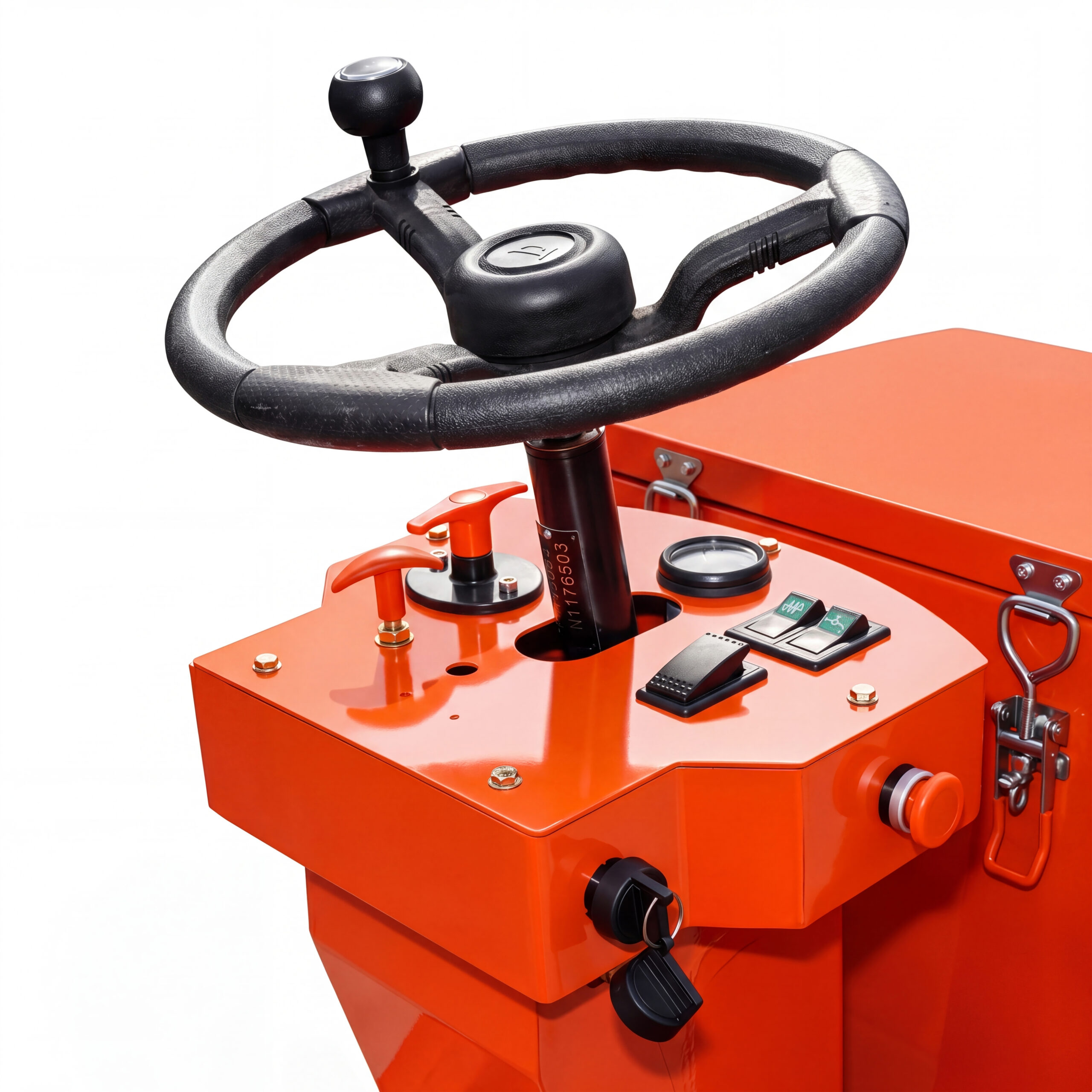

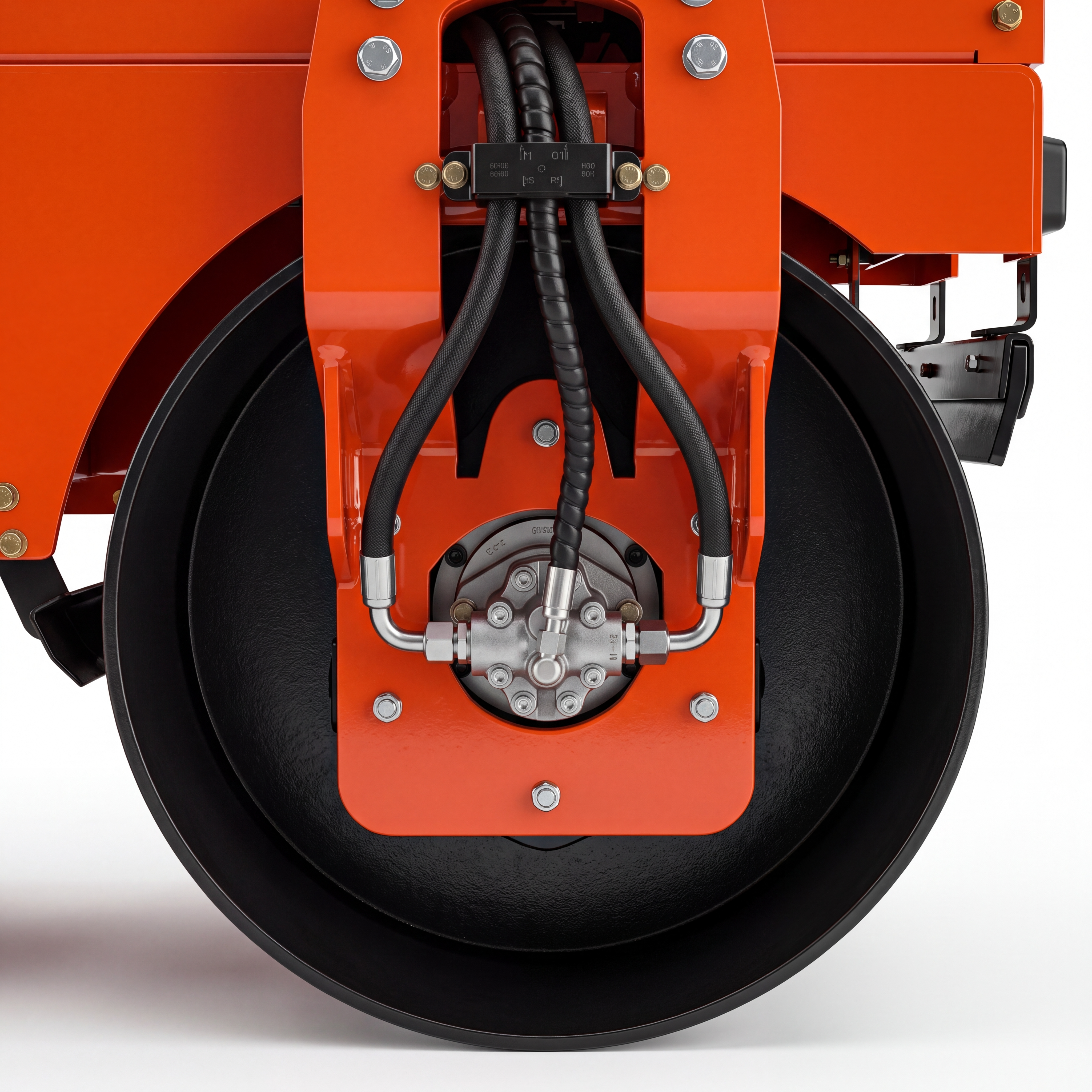

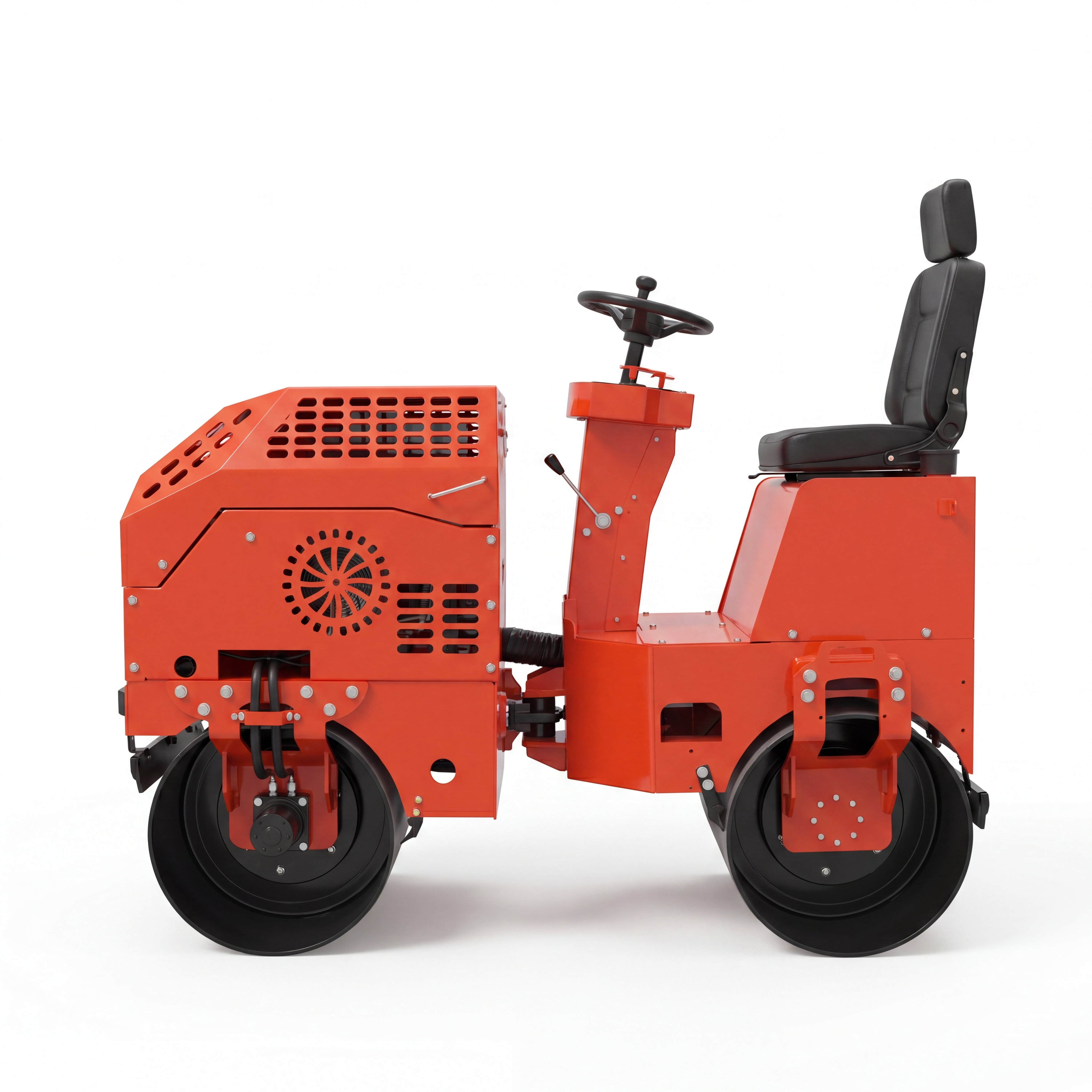

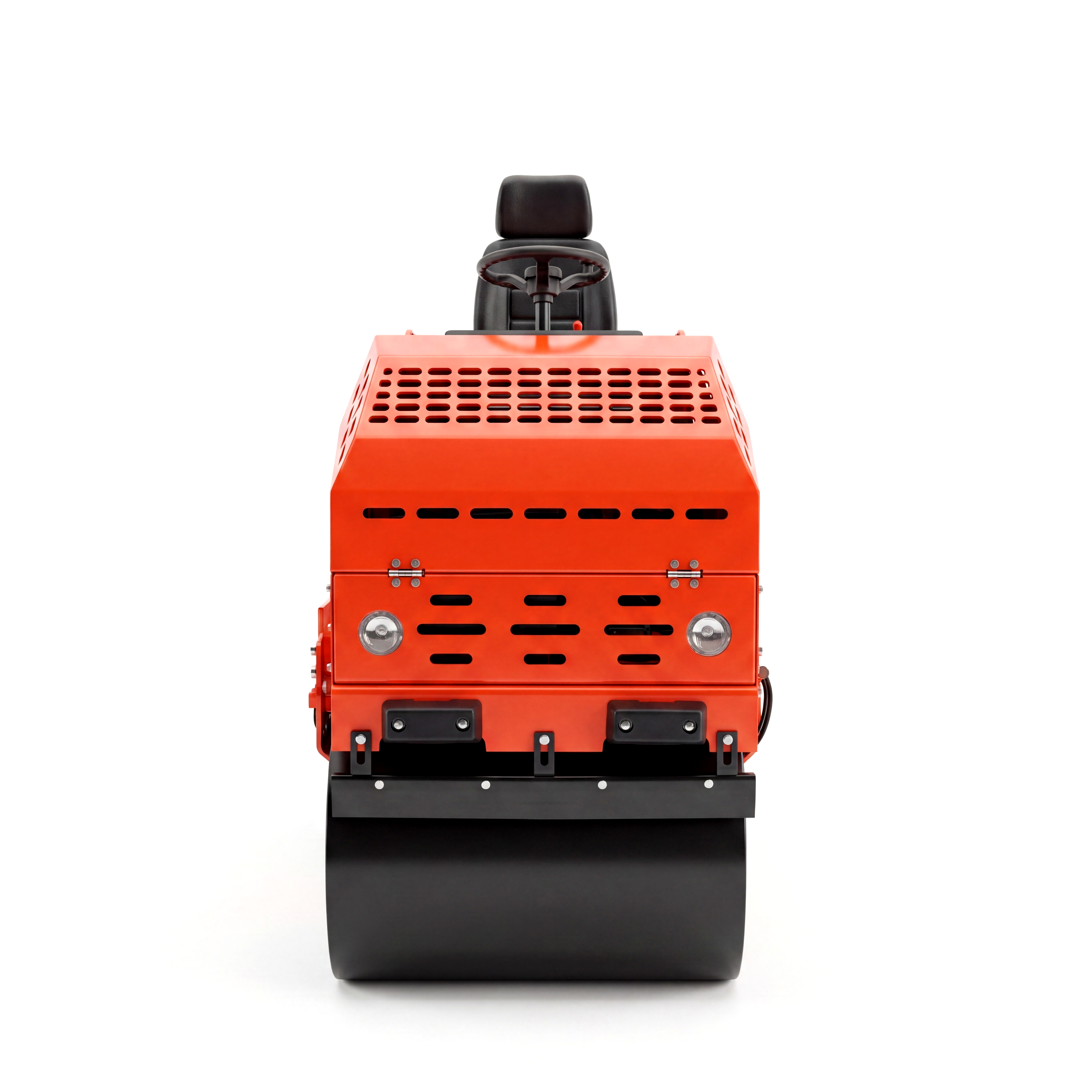

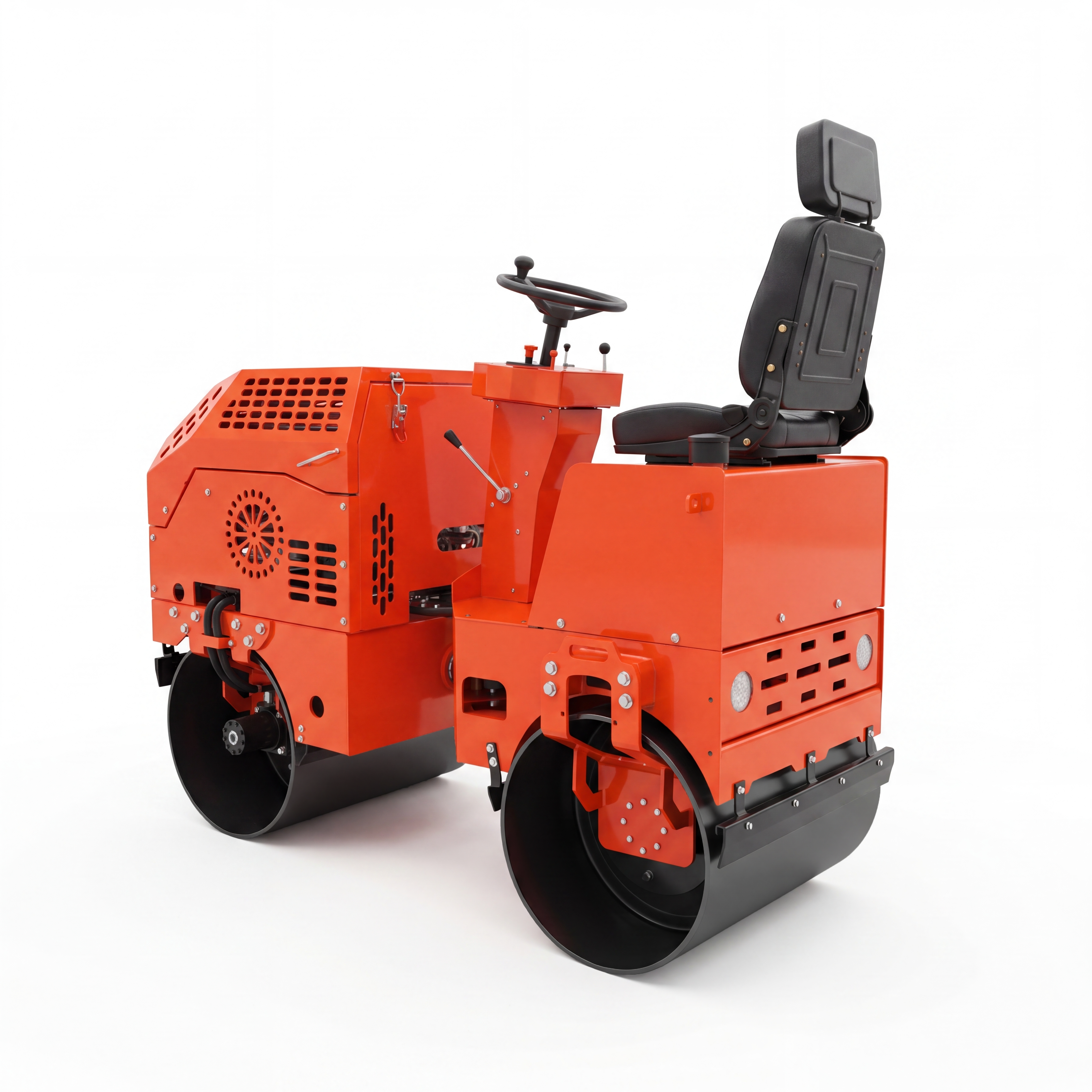

Product Gallery
