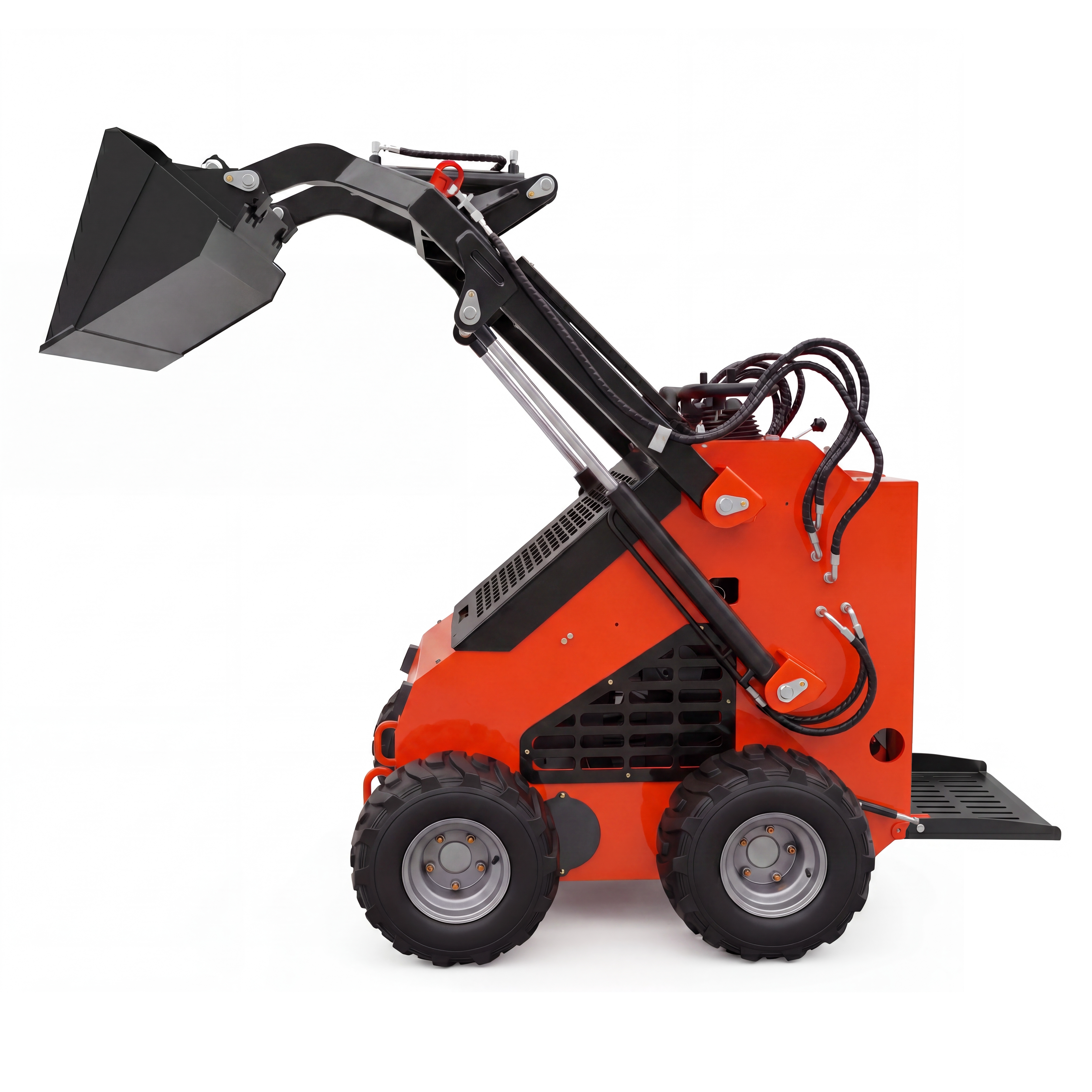

SDLL70
| Overall Weight | 720t | Hydraulic Oil Tank Capacity | 23L |
| Engine Brand/Model | Rato R740 | Engine Oil Capacity | 1.6L |
| Rated Power | 16.8kw / 3600r/min | Overall Length | 2055mm |

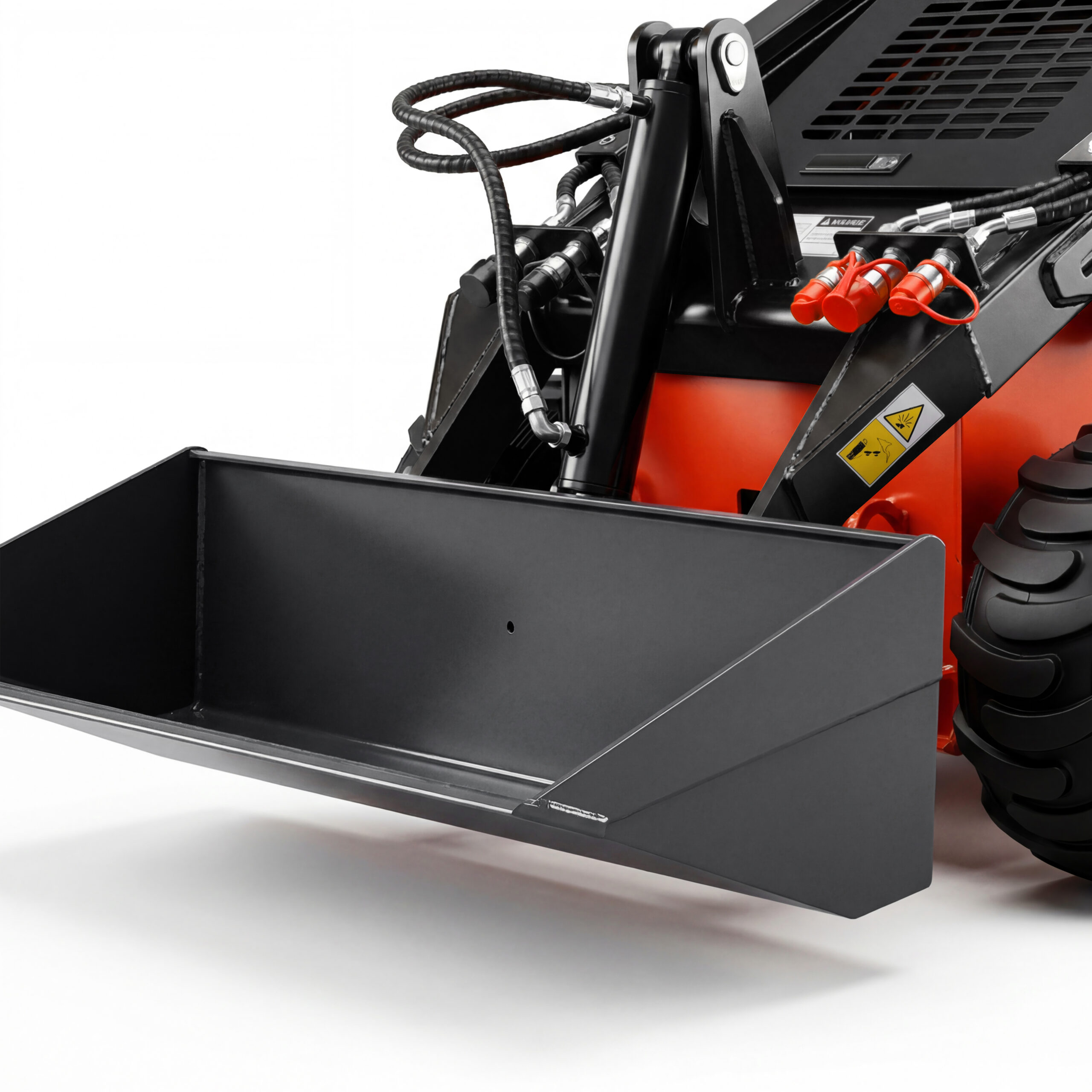

| Bucket capacity | 0.15m³ | Overall Width | 1090mm |
| Bucket Width | 1050mm | Overall Height | 1270mm |
| Traveling Motor | Ruili / Litu | Body Width | 810mm |
| Travel Speed | 0-6km/h | Max. Operating Height | 2100mm |
| Hydraulic System | Gear Pump: Tianjin Xingzou / Multi-way Valve: Lixin | Max. Pin Height | 1800mm |
| Max. Lifting Capacity | 200kg | Max. Dump Height | 1480mm |
| Max. Gradeability | 25% | Ground Clearance | 110mm |
| Fuel Tank Capacity | 28L | Bucket Dump Angle | 30° |
|
OPTION ● Standard 〇 Optional — N/A |
ENGINE |
1. Briggs & Stratton 23T2: Twin-cylinder Gasoline (EPA/EURO5), 17.1kw/3600r/min 2. Kubota D722: Three-cylinder Diesel (EPA/EURO5), 10.2KW/2500r/min 3. Yanmar 374: Three-cylinder Diesel (EPA/EURO5), 11.2KW/2400r/min 4. Koop 292: Twin-cylinder Diesel (EURO5), 15kw/3000r/min |
| 〇Rubber (width * pitch * number of sections) | – | |
| 〇Steel (width * pitch * number of sections) | – | |

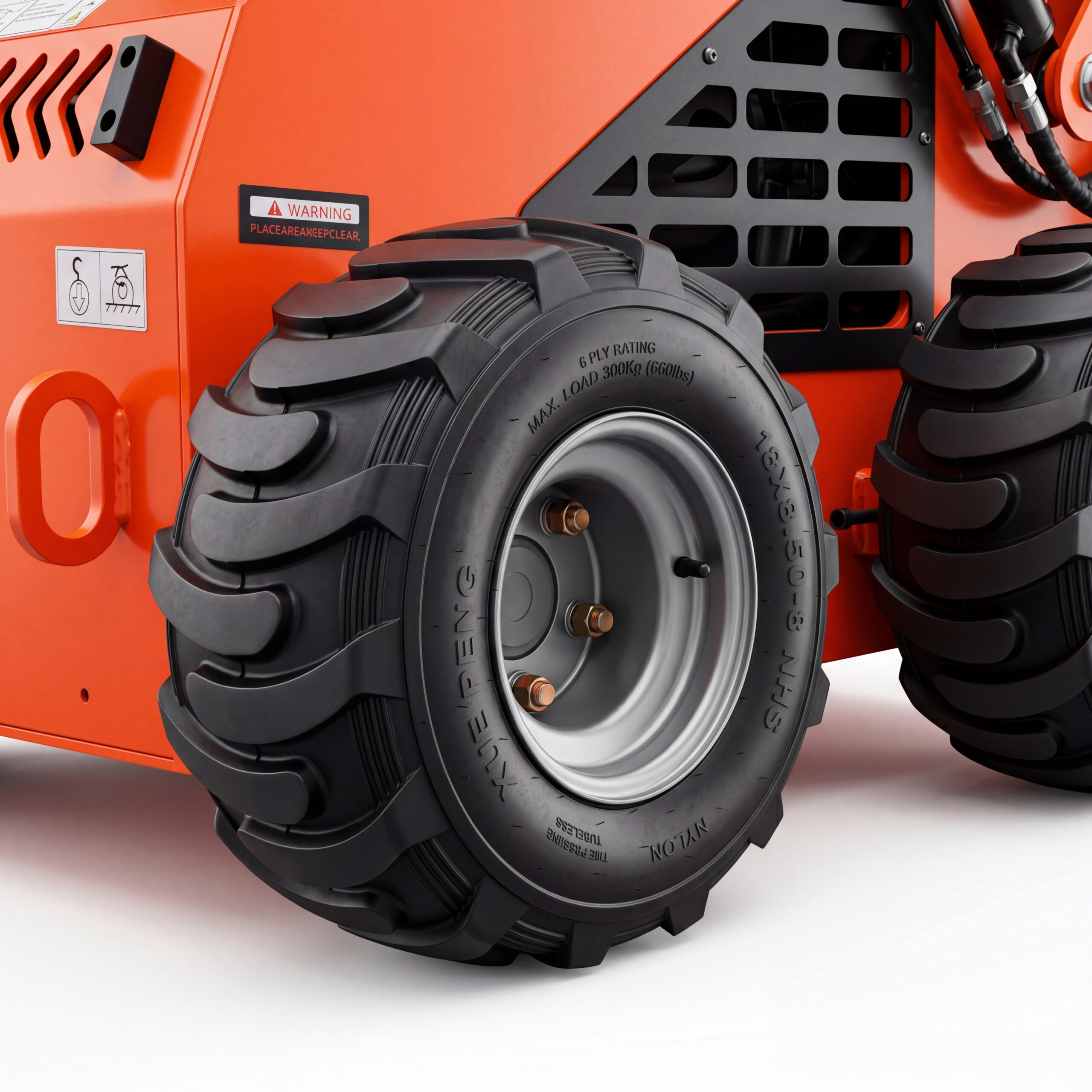

| Tires | 6.50-10 Pneumatic Tires with Steel Rims | |
| Cab | – | |
| Canopy | – | |

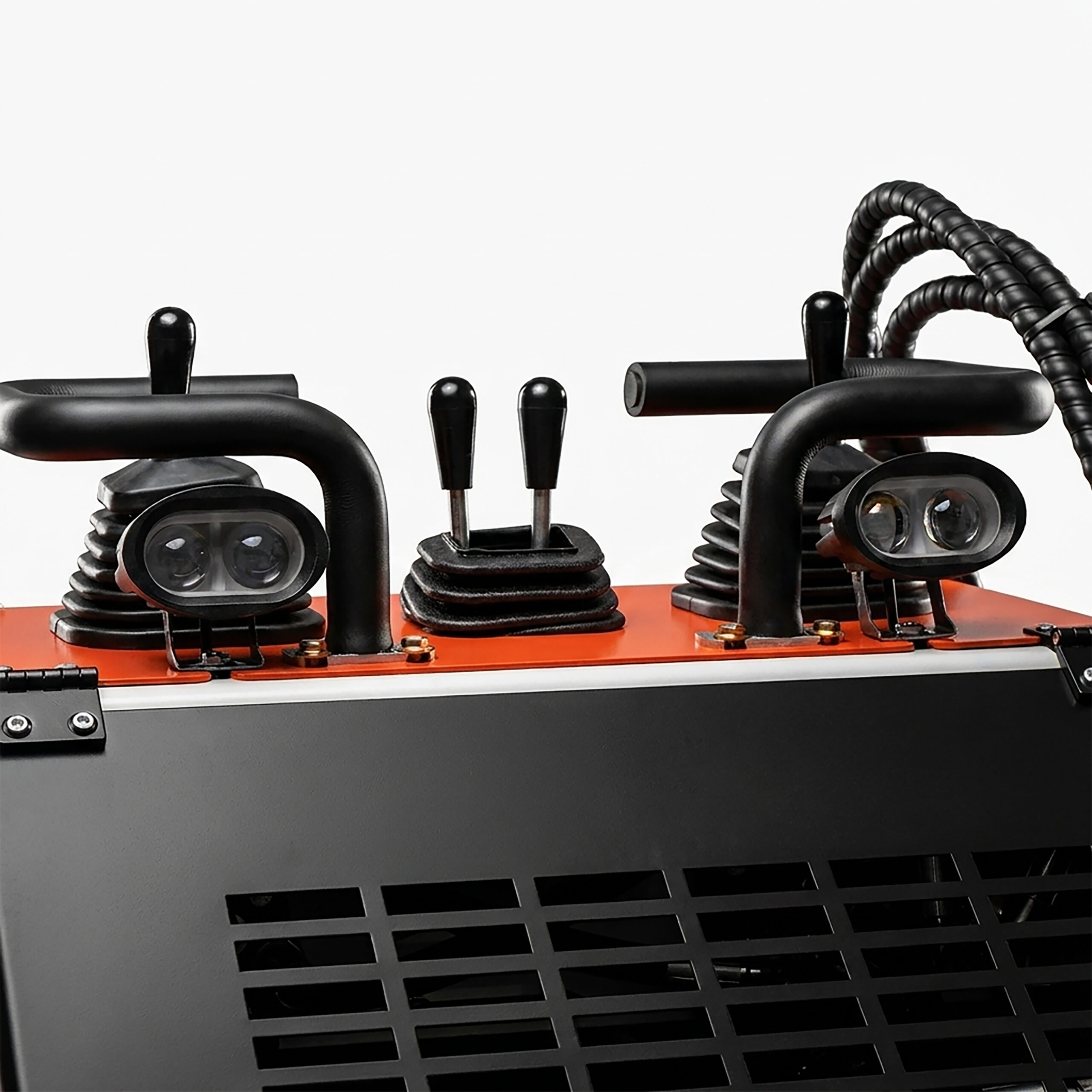

| Armrest | ● | |
| Tensioning Type | Mechanical Tensioning | |
| Air Conditioning (A/C) | – |

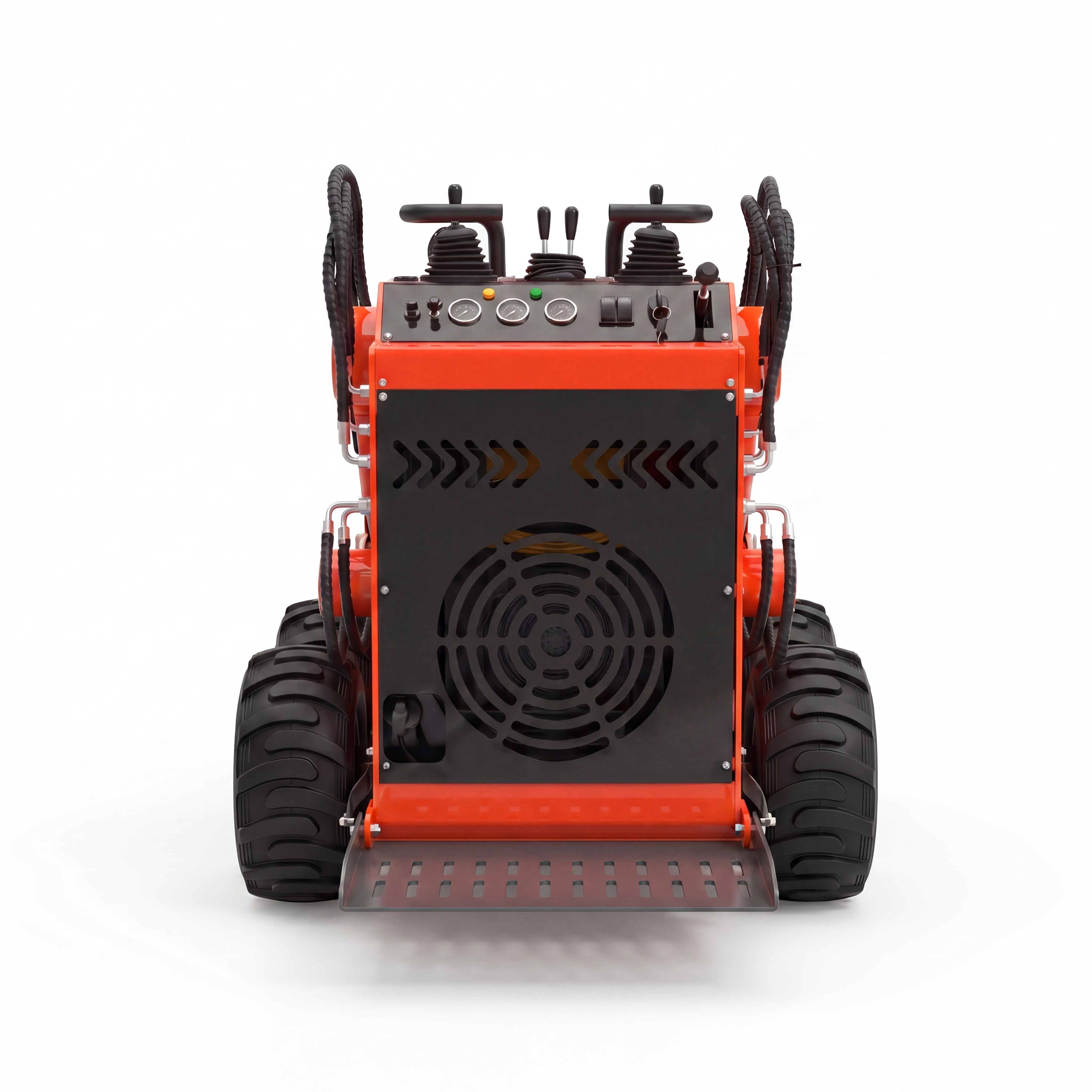

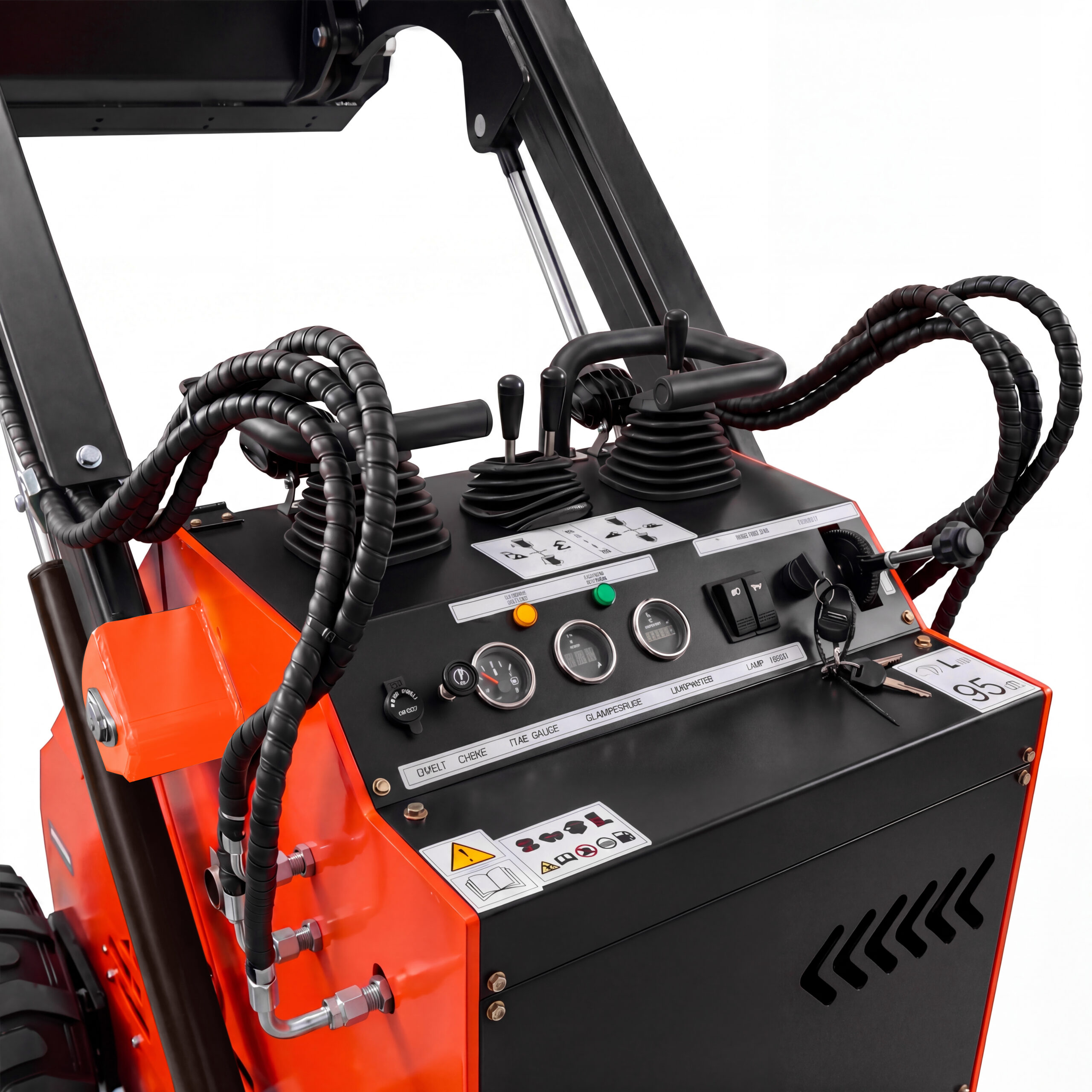

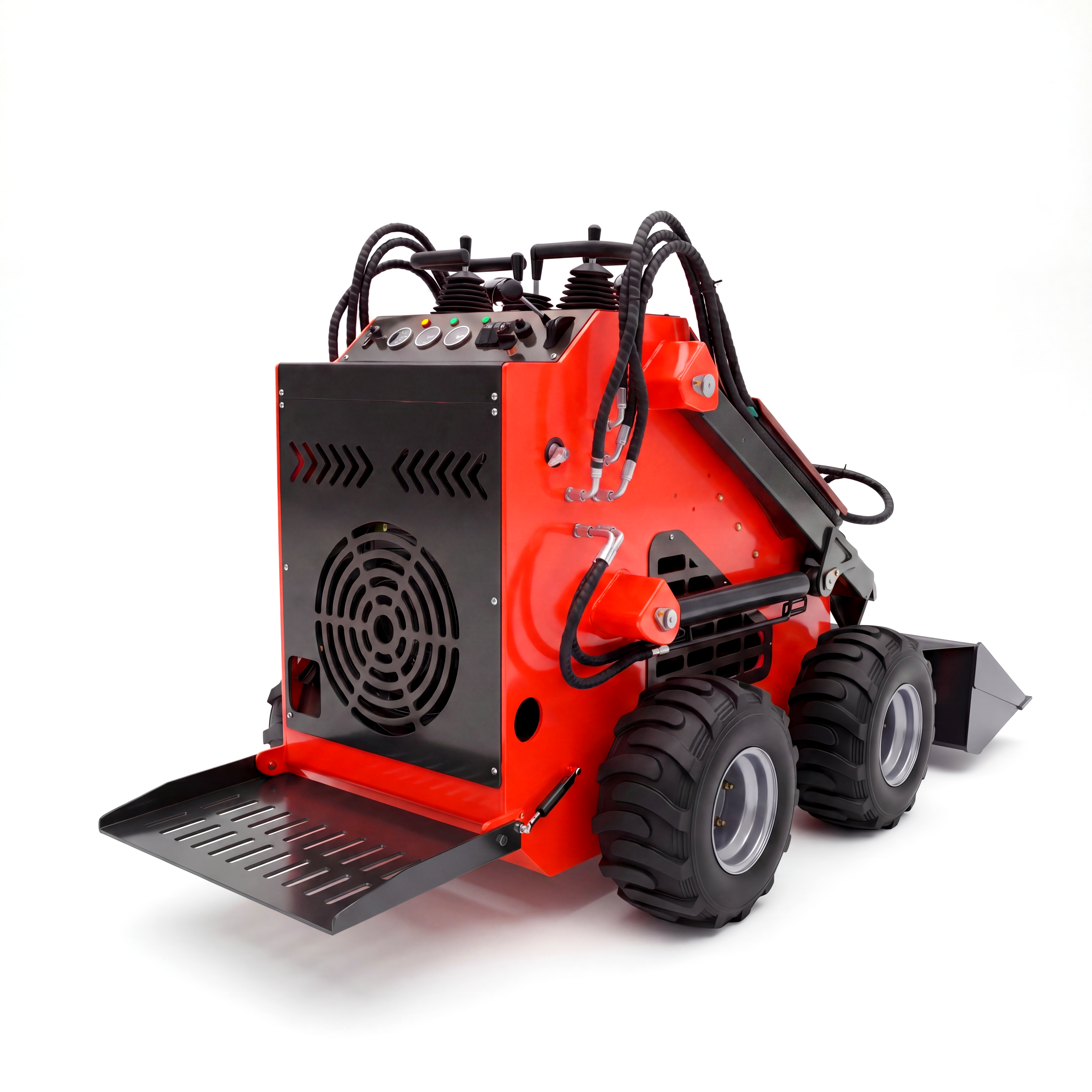

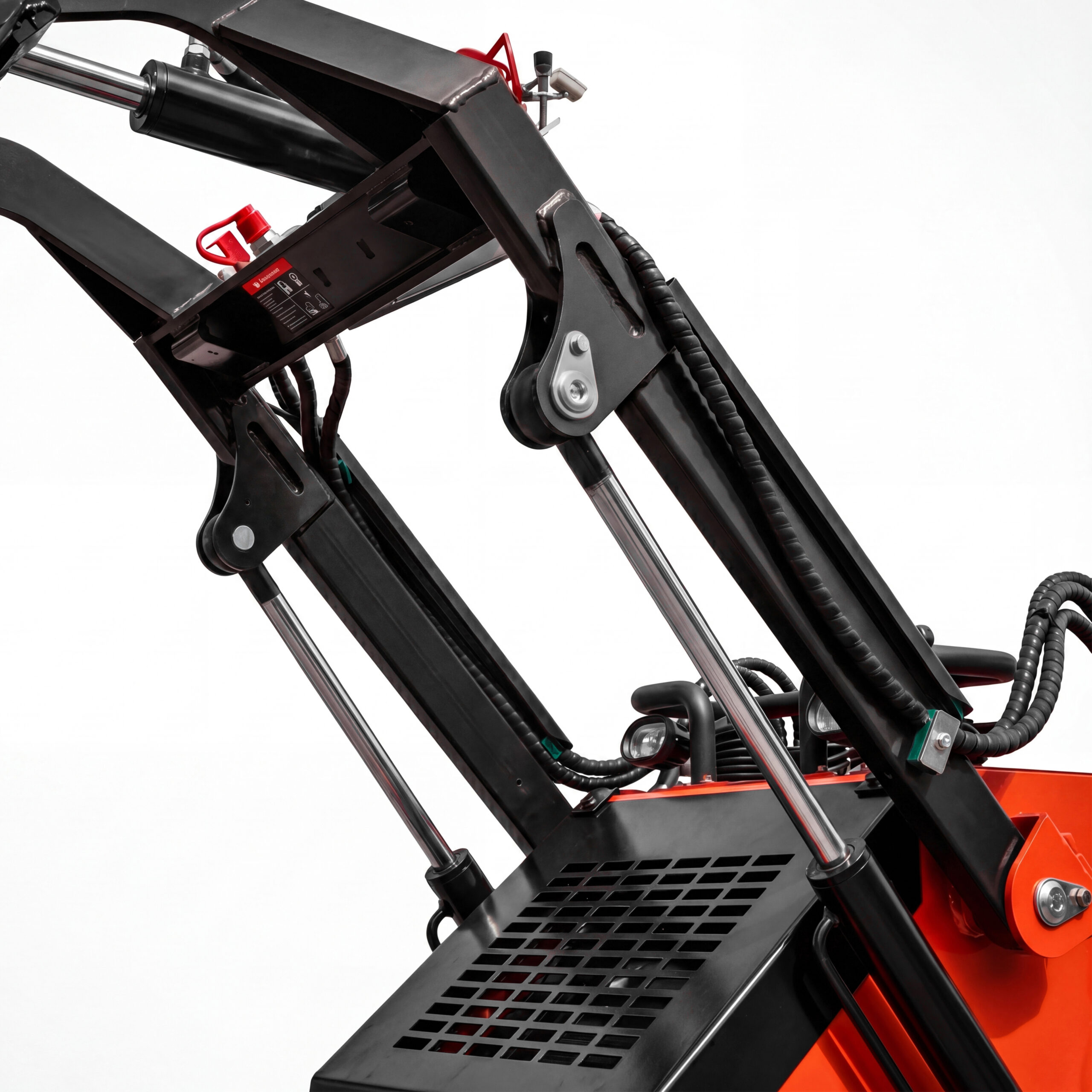

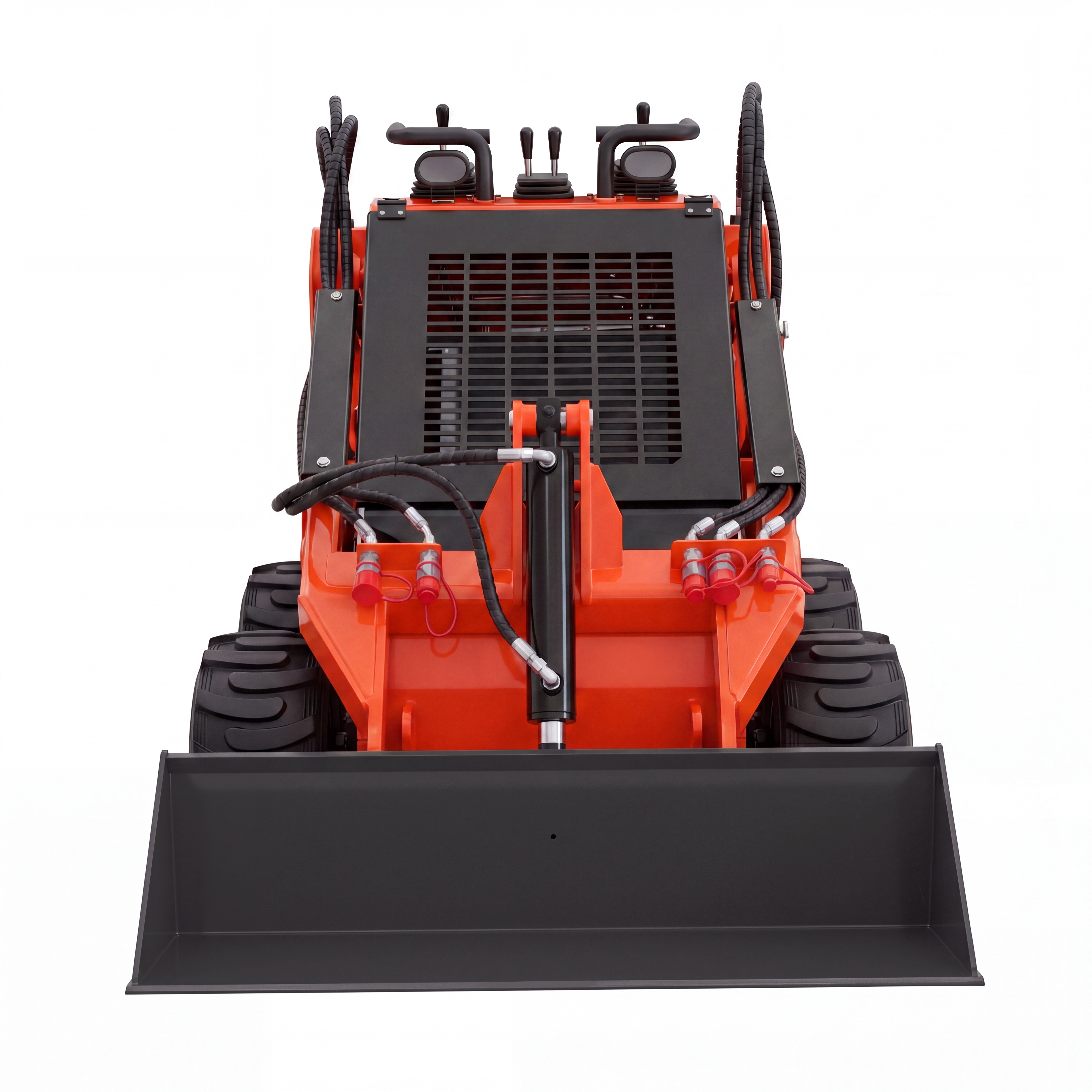

Product Gallery
