SDLL1200
| Overall Weight | 960t | Hydraulic Oil Tank Capacity | 20L |

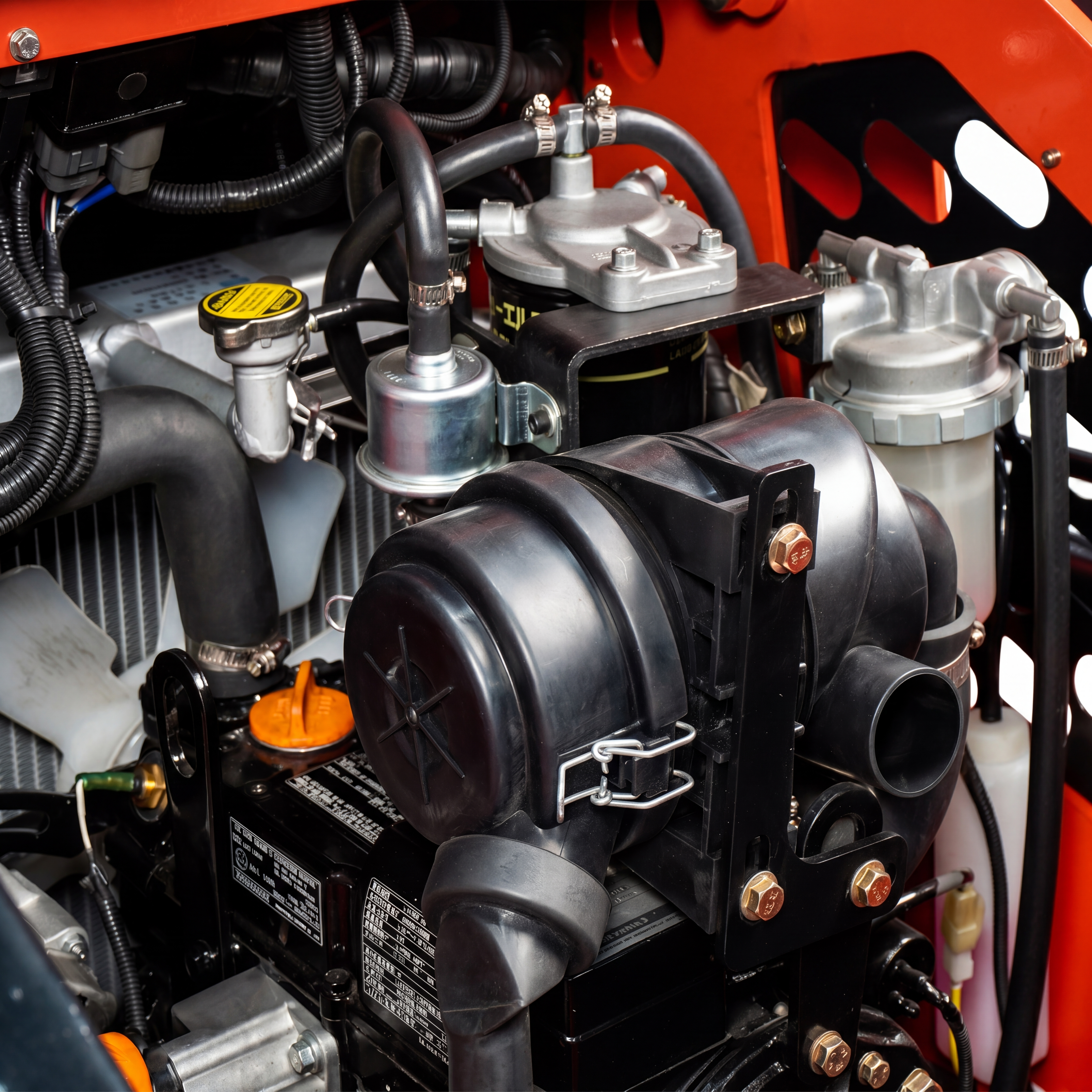

| Engine Brand/Model | Yanmar 374 | Engine Oil Capacity | 4.5L |
| Rated Power | 16.8kw / 3600r/min | Overall Length | 2100mm |

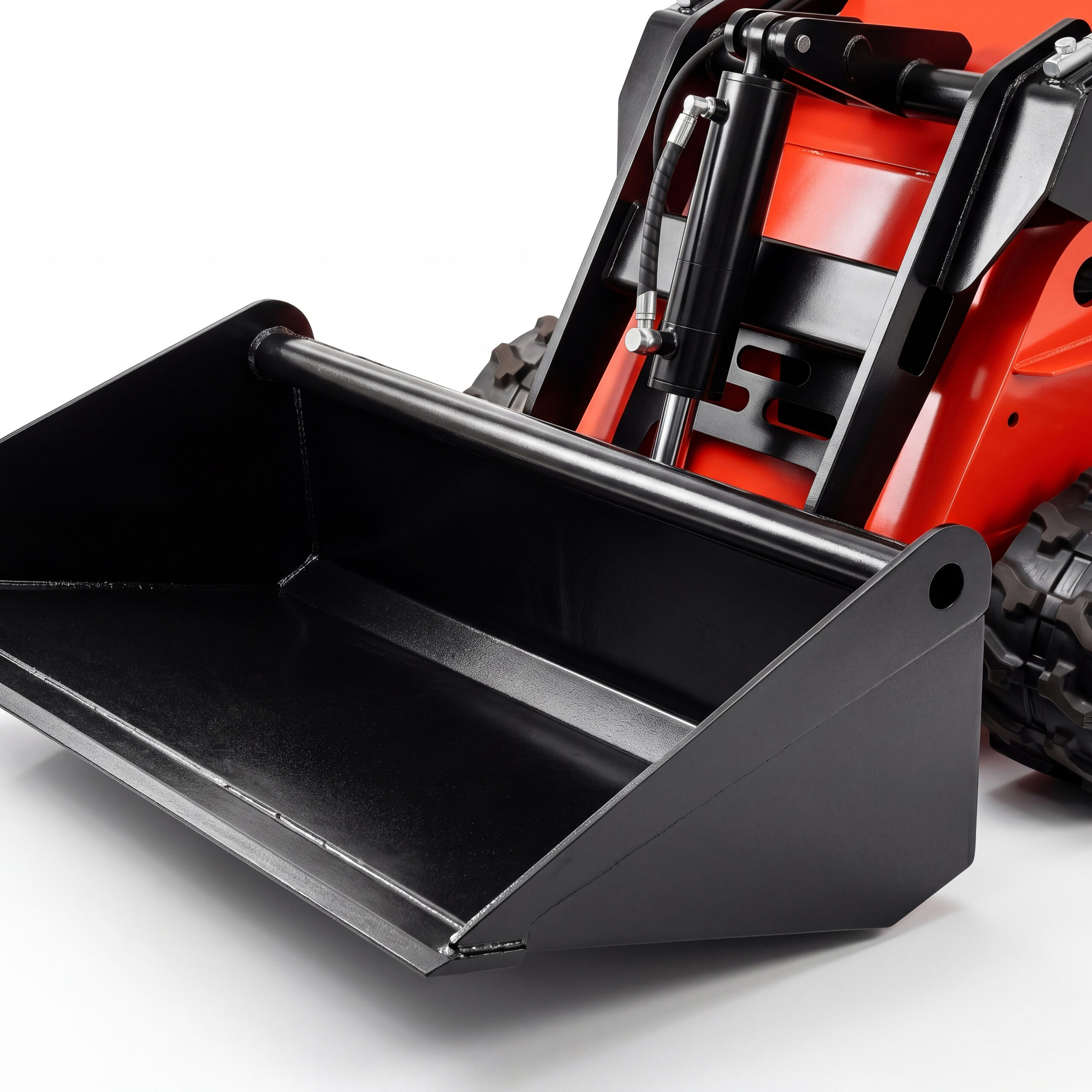

| Bucket capacity | 0.2m³ | Overall Width | 950mm |
| Bucket Width | 1100mm | Overall Height | 1350mm |
| Traveling Motor | Ruili / Litu | Body Width | 930mm |
| Travel Speed | 0-4km/h | Max. Operating Height | 2820mm |
| Hydraulic System | Gear Pump: Tianjin Xingzou / Multi-way Valve: Lixin | Max. Pin Height | 2250mm |
| Max. Lifting Capacity | 200kg | Max. Dump Height | 2100mm |
| Max. Gradeability | 25% | Ground Clearance | 120mm |
| Fuel Tank Capacity | 20L | Bucket Dump Angle | 30° |
|
OPTION ● Standard 〇 Optional — N/A |
ENGINE |
– |

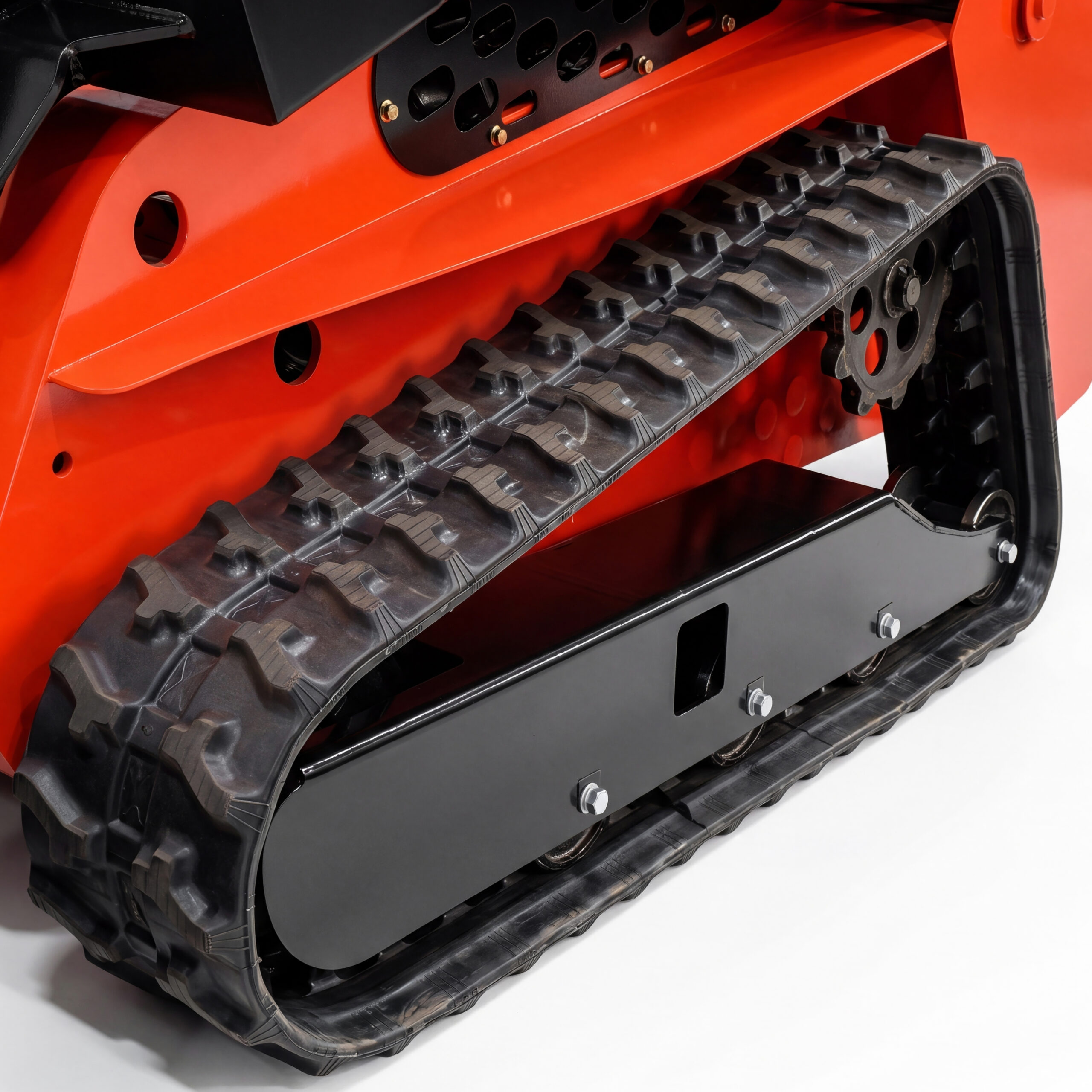

| 〇Rubber (width * pitch * number of sections) | 180*72*42 | |
| 〇Steel (width * pitch * number of sections) | – | |
| Tires | – | |
| Cab | – | |
| Canopy | – | |
| Armrest | ● | |
| Tensioning Type | Mechanical Tensioning | |
| Air Conditioning (A/C) | – |
