SDLGB-2+2
| Vehicle Dimensions | 2950 × 1290 × 1900 mm | Electronic Control System | 60V 300A three-phase AC controller with CMOS stepless speed regulation system, featuring automatic electronic braking and anti-roll-back functions. |
| Driving Range | 60 km | Motor | 60V 4kW three-phase AC asynchronous high-efficiency copper-winding motor with high torque and low noise. |
| Rated Passenger Capacity | 4 Passengers | Battery | 60V 105Ah Lead-acid Battery |
| Turning Radius | ≤ 4.5 m | Charger | Input Voltage: AC220V; Output voltage is stage-controlled according to the battery charging curve. |
| System Voltage | 60 V | Charging Time | 10 Hours |
| Front/Rear Track Width | Front 980 mm / Rear 1060 mm | Body | High-carbon steel frame (PP composite injection-molded front cover) with superior impact resistance. |
| Curb Weight | 500 kg | Chassis | High-strength steel structure with environmentally friendly PU soft seats, treated with electrophoresis and powder coating for rust prevention. |
| Wheelbase | 1700 mm | Seats | Foam cushion designed according to ergonomic principles. |
| Maximum Gradeability | ≤ 25% | Lighting & Signals | LED high/low beam headlights, turn signals, rear combination taillights, horn, and reverse buzzer. |
| Maximum Speed | ≤ 40 km/h | Steering System | Ball-joint Steering Mechanism |
| Braking Distance | ≤ 5 m | Braking System | Front 4-wheel disc brakes + rear drum brakes + foot parking brake. |
| Gross Vehicle Weight | 850 kg | Front Axle & Suspension | Front MacPherson independent suspension with coil springs and hydraulic shock absorbers. |
| Minimum Ground Clearance | 220 mm | Rear Axle & Suspension | Integrated rear axle with combined suspension and hydraulic shock absorbers. |
| Storage Basket Dimensions | 800 × 290 × 112 mm | Tires | 20 × 10-12 tires with steel rims. |

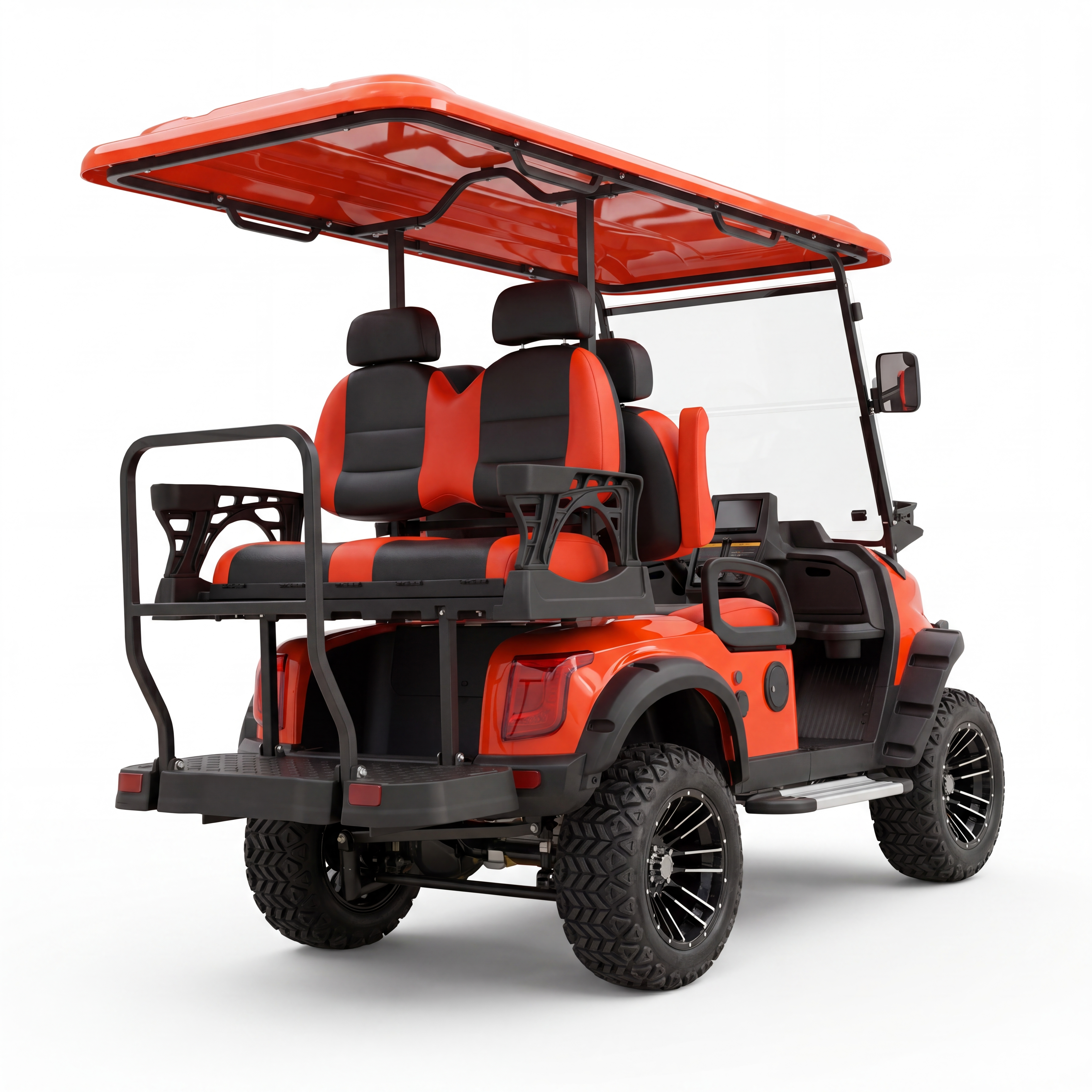

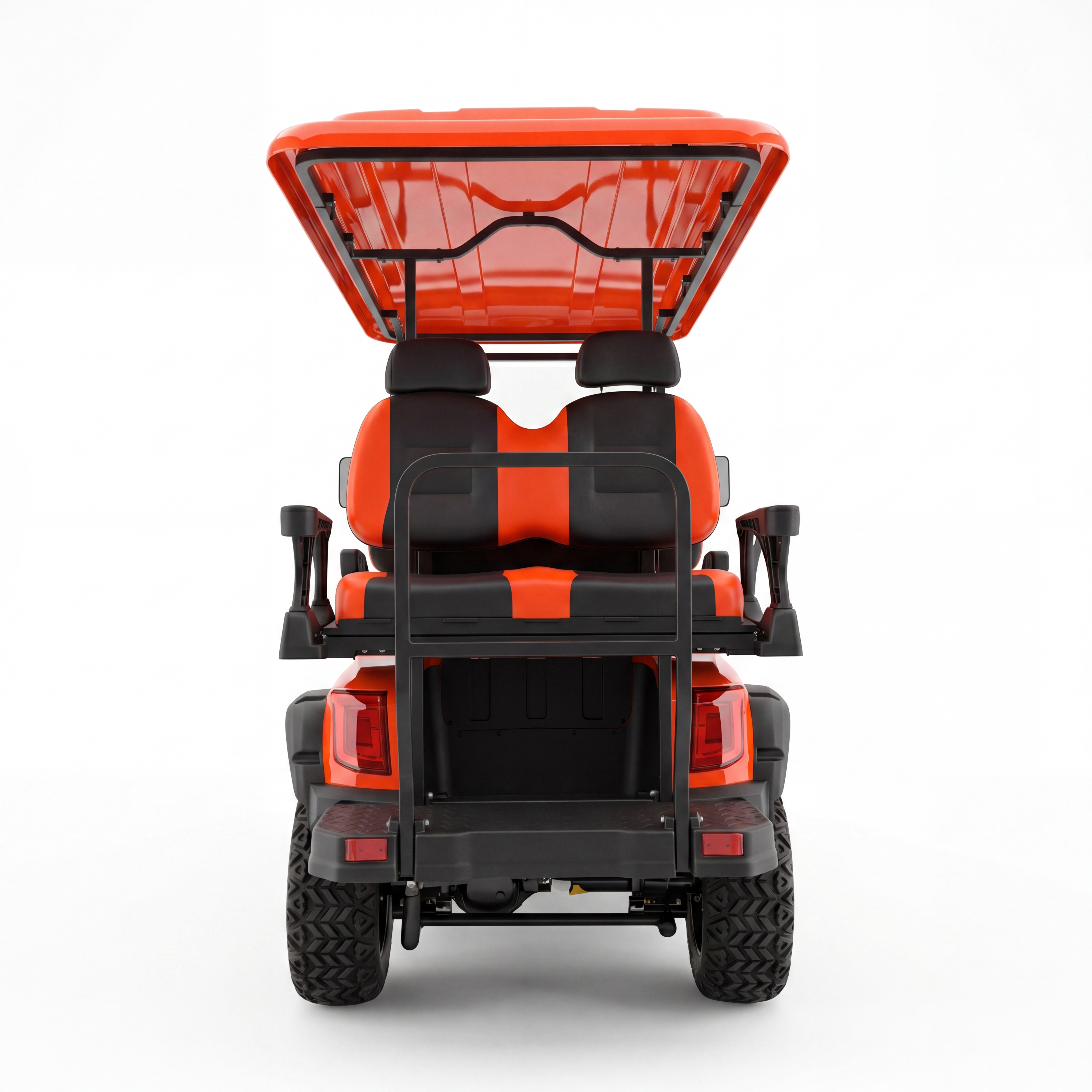

Product Gallery
