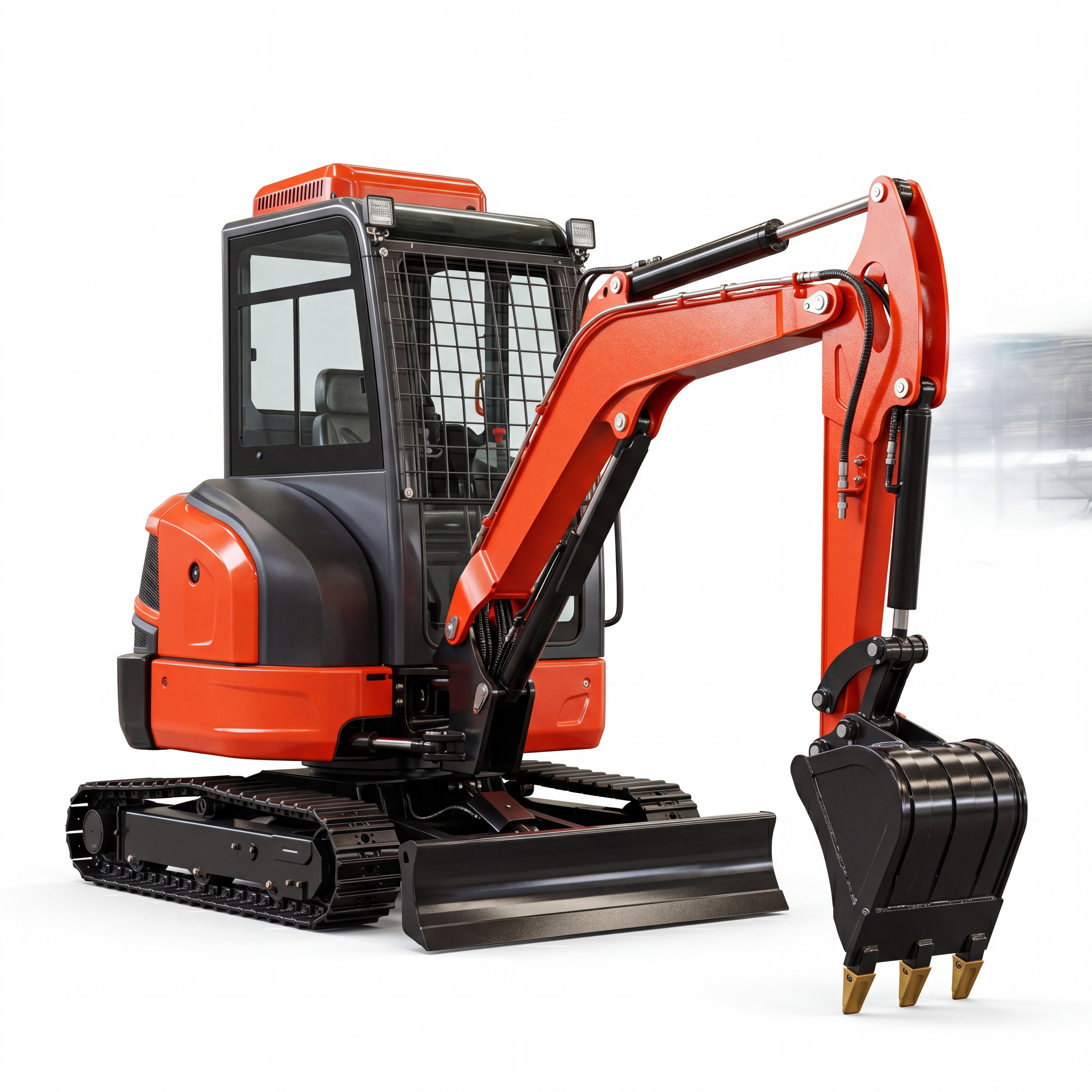

SDLE42
| Overall weight | 2.9t | Overall Length | 4077mm |
| Engine Brand | Kubota 1703 | Overall Width | 1500mm |
| Rated Power | 18.2kw | Overall Height | 2450mm |
| Digging Bucket Capacity | 0.03m³ | Track Width | 230mm |
| Bucket Width | 500mm | Track Length | 1850mm |
| Traveling Motor | RUILI / LIDUN | Body Width | 1355mm |
| Travel Speed | 4.0/2.2KM/h | Max. Digging Radius | 4520mm |
| Swing Motor | RUILI / LIDUN | Max Digging Depth | 2456mm |
| Swing Speed | 8r/min | Max. Digging Height | 4155mm |
| Hydraulic system |
Piston Pump: Taifeng Load Sensing Valve: Taifeng
|
Max. Unloading Height | 2840mm |
| Body Swing Radius | 858mm | Min. Swing Radius | 2135mm |
| Body Swing Angel | 360 | Max. Digging Depth Of Dozer Blade | 367mm |
| Boom Swing Angel(L/R) | 60°/45° | Max. Lifting Height Of Dozer Blade | 330mm |
| Max. Grade Ability | 15° | ||
| Fuel tank | 34L | ||
| Hydraulic oil tank | 30L |
