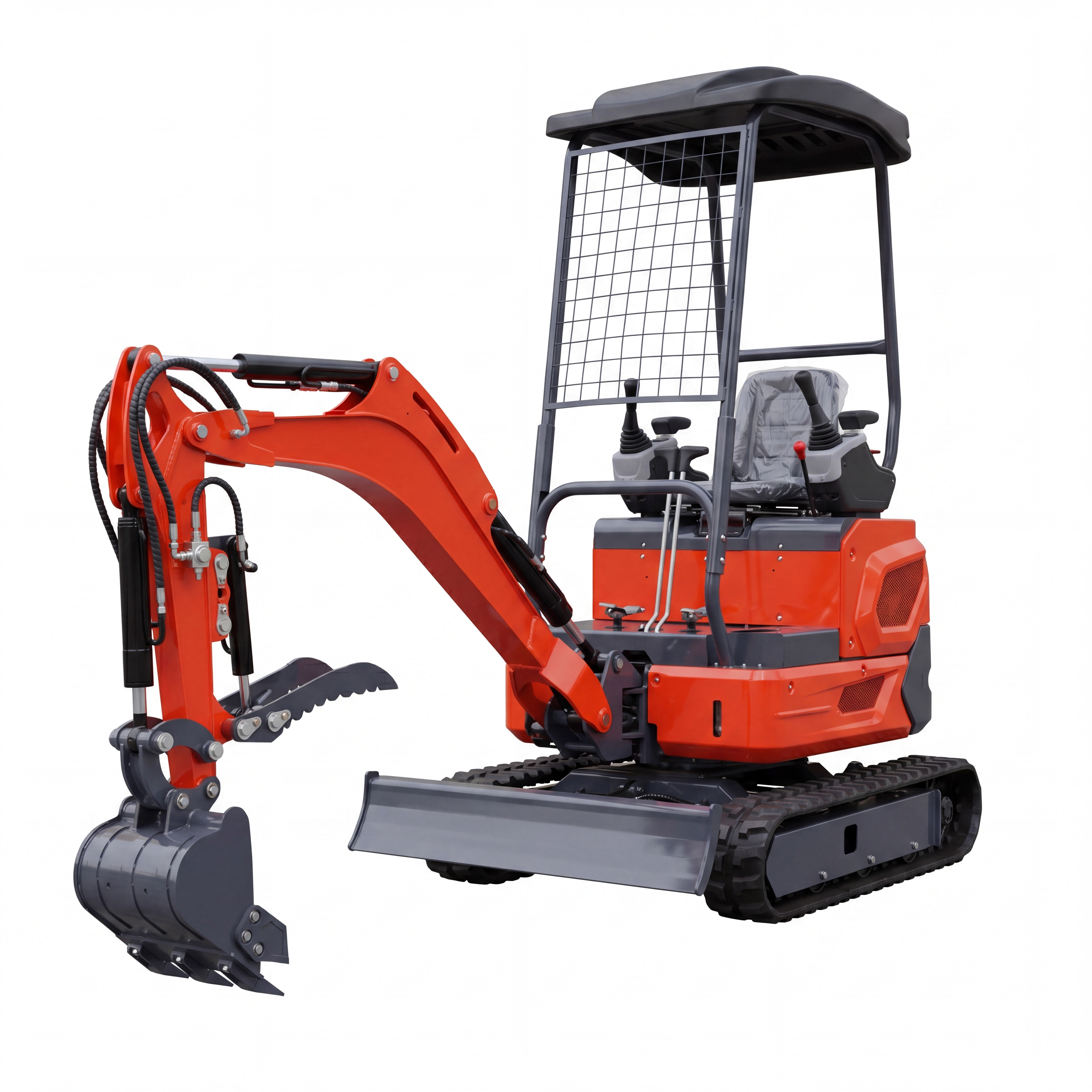

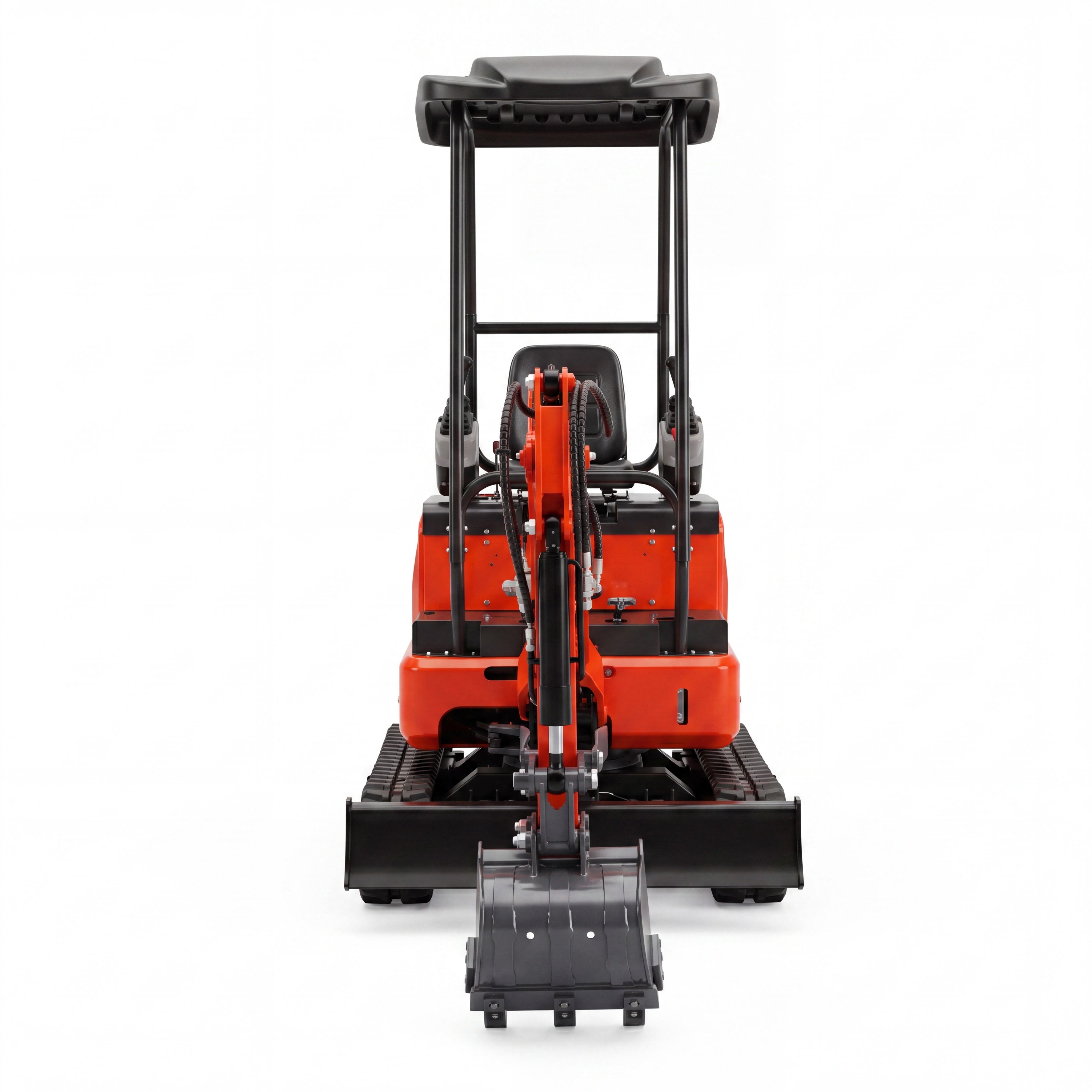

SDLE22
| Overall weight | 1.23t | Overall Length | 3200mm |

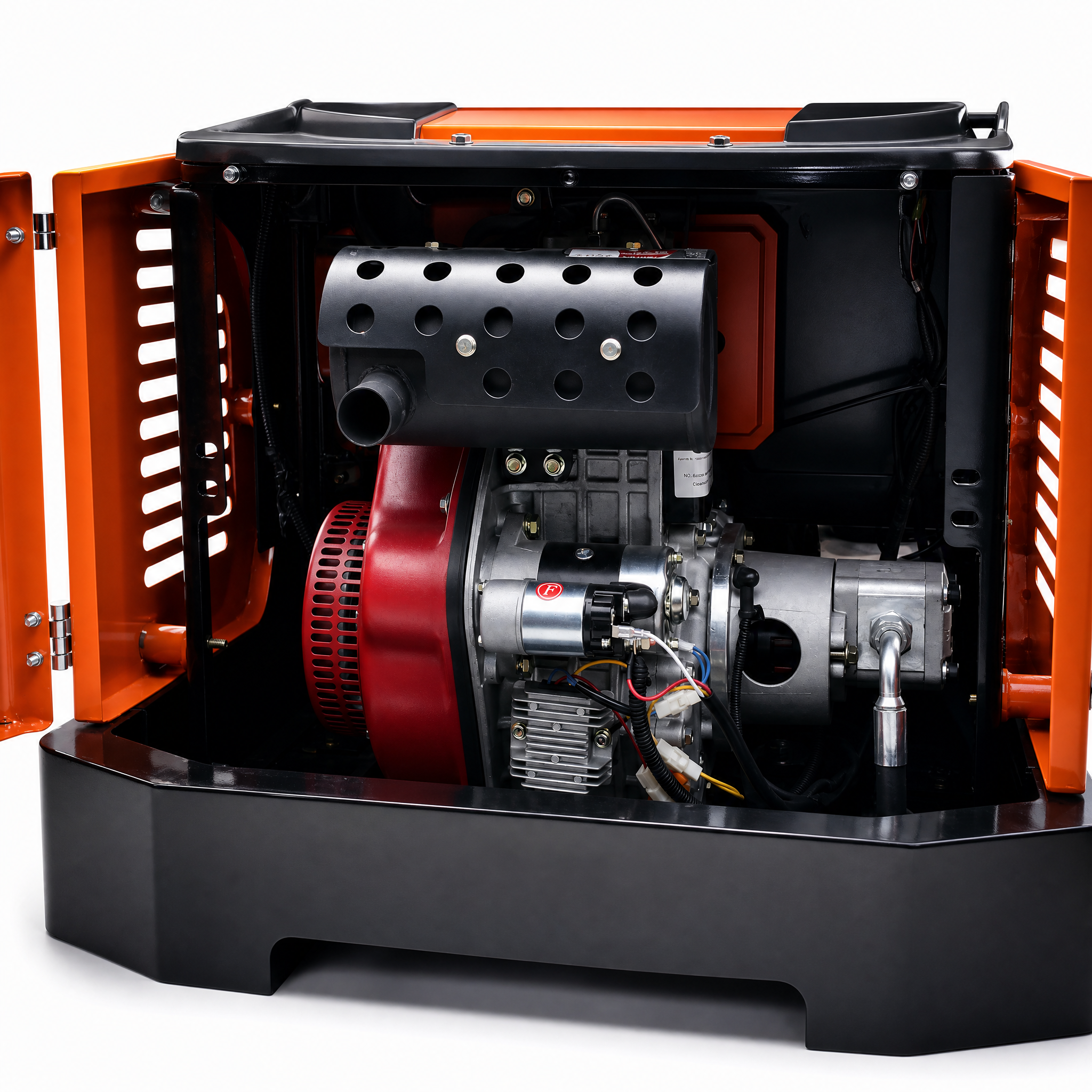

| Engine Brand | Laidong 385 | Overall Width | 1200mm |
| Rated Power | 18.4kw | Overall Height | 2350mm |

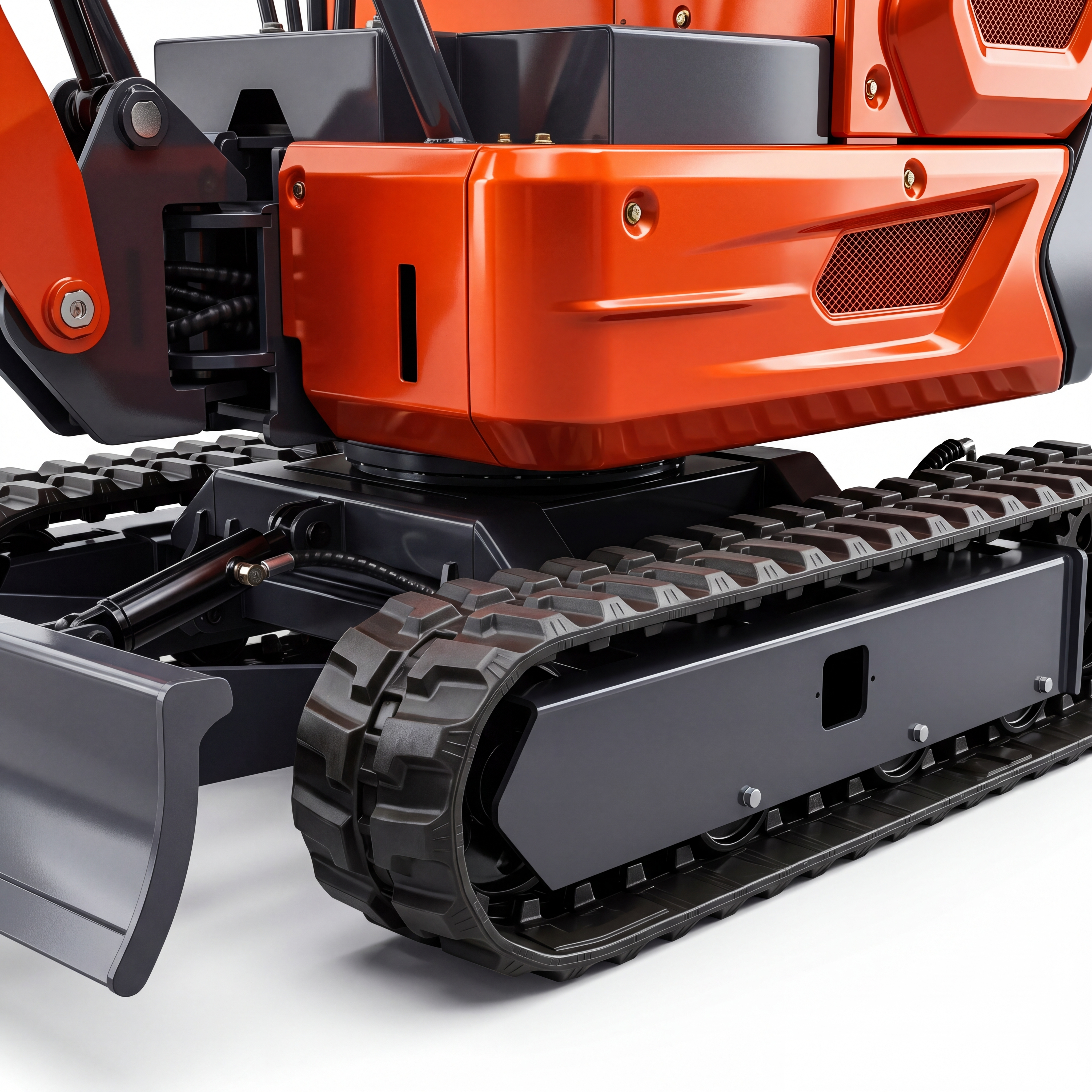

| Digging Bucket Capacity | 0.02m³ | Track Width | 200mm |

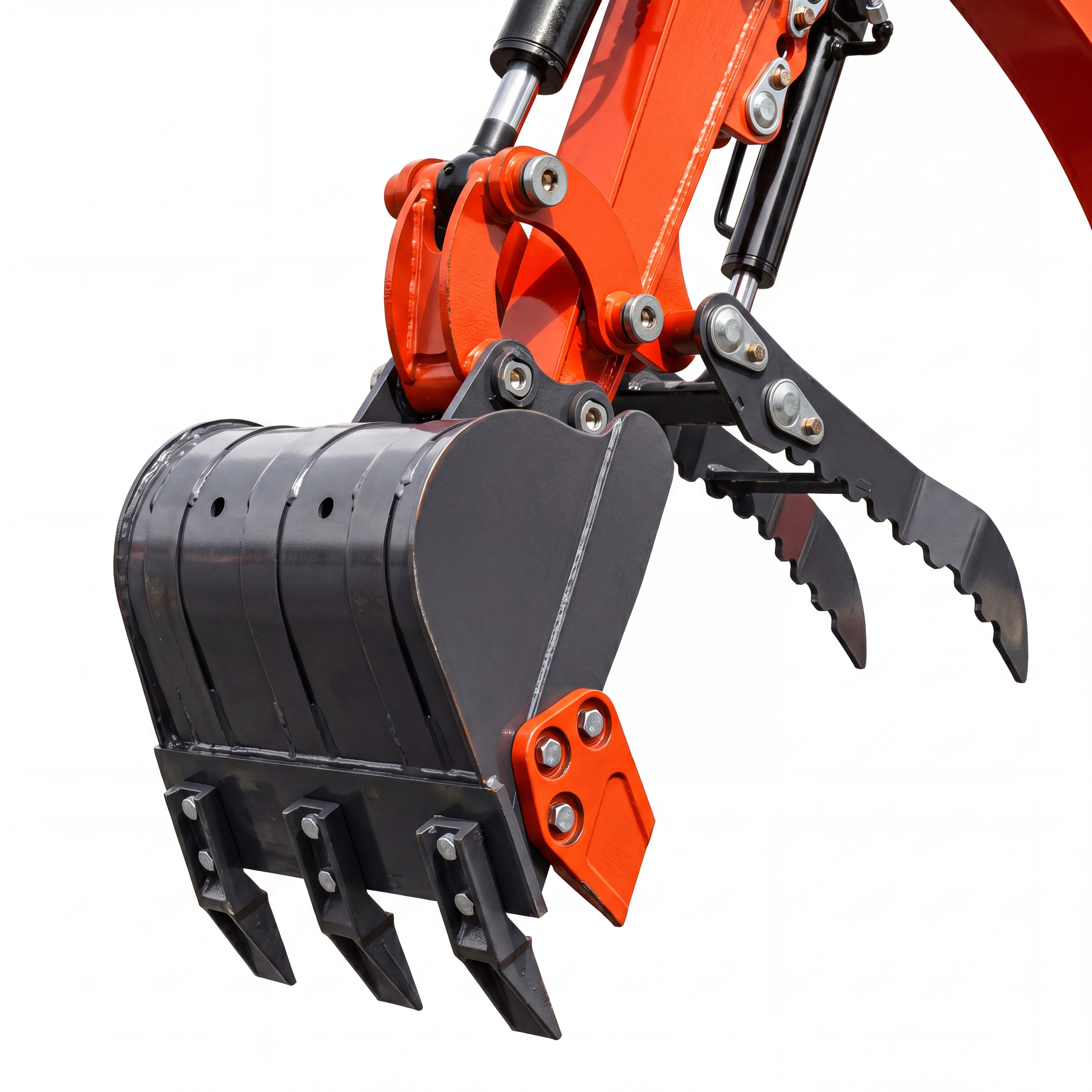

| Bucket Width | 350mm | Track Length | 1400mm |
| Traveling Motor | RUILI / LIDUN | Body Width | 983mm |
| Travel Speed | 0-1.8KM/h | Max. Digging Radius | 3100mm |
| Swing Motor | RUILI / LIDUN | Max Digging Depth | 1780mm |
| Swing Speed | 10r/min | Max. Digging Height | 2420mm |
| Hydraulic system |
Tianjin Xingzhou Precision Gear Pump Taiheng 8-Spool Multi-way Valve |
Max. Unloading Height | 1650mm |
| Body Swing Radius | 700mm | Min. Swing Radius | 1560mm |

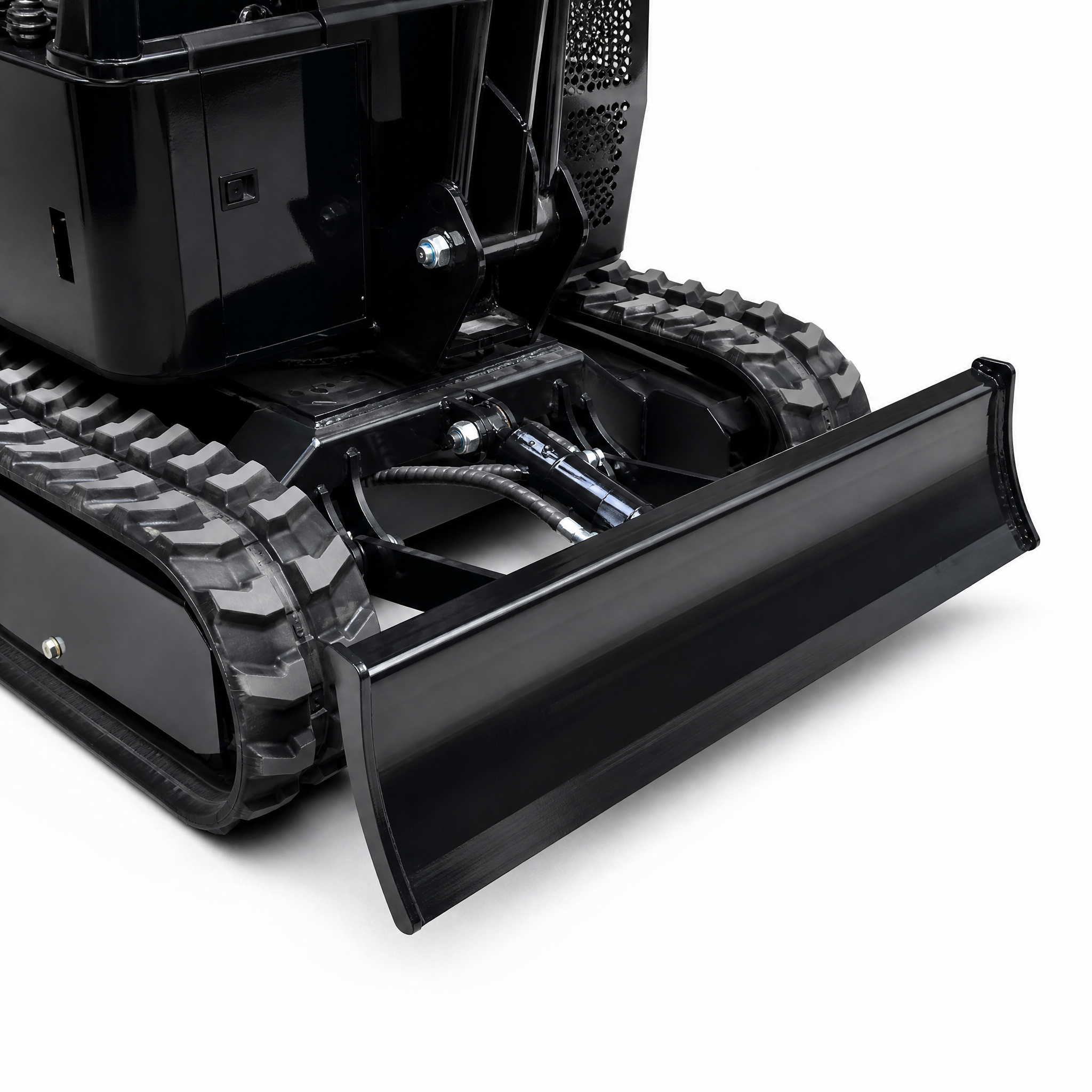

| Body Swing Angel | 360 | Max. Digging Depth Of Dozer Blade | 180mm |
| Boom Swing Angel(L/R) | 45°/45° | Max. Lifting Height Of Dozer Blade | 110mm |
| Max. Grade Ability | 15° | ||
| Fuel tank | 9.5L | ||
| Hydraulic oil tank | 11L |

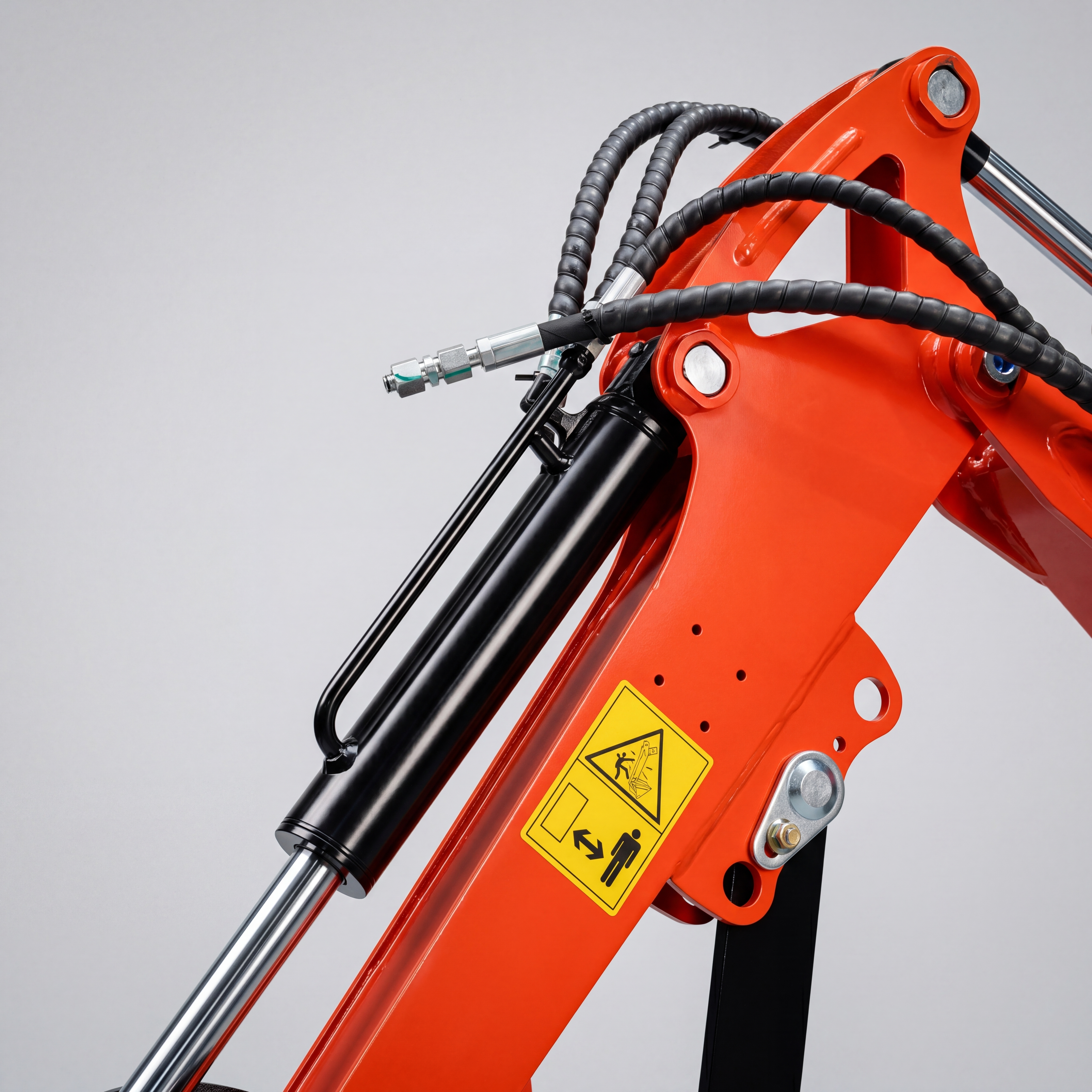

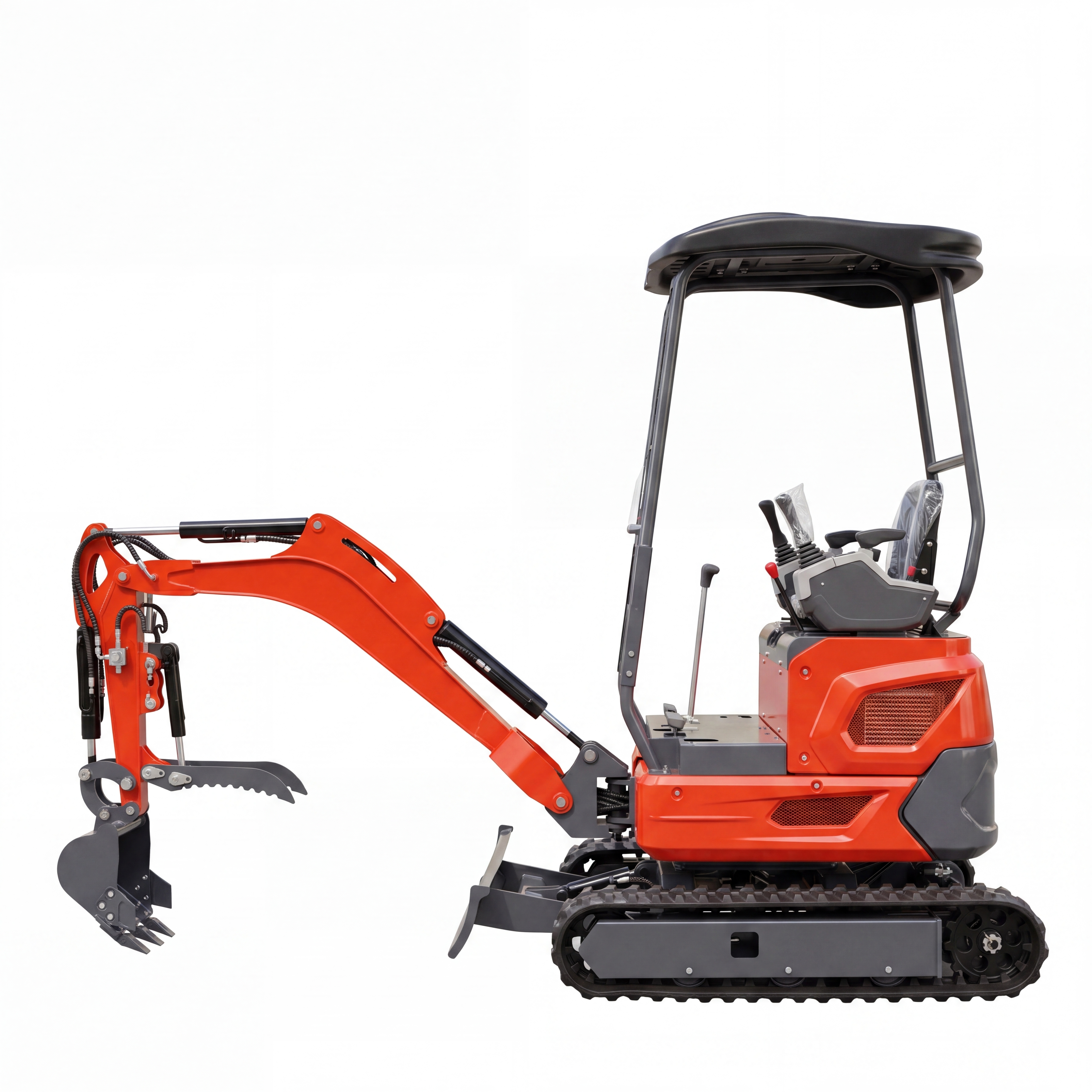

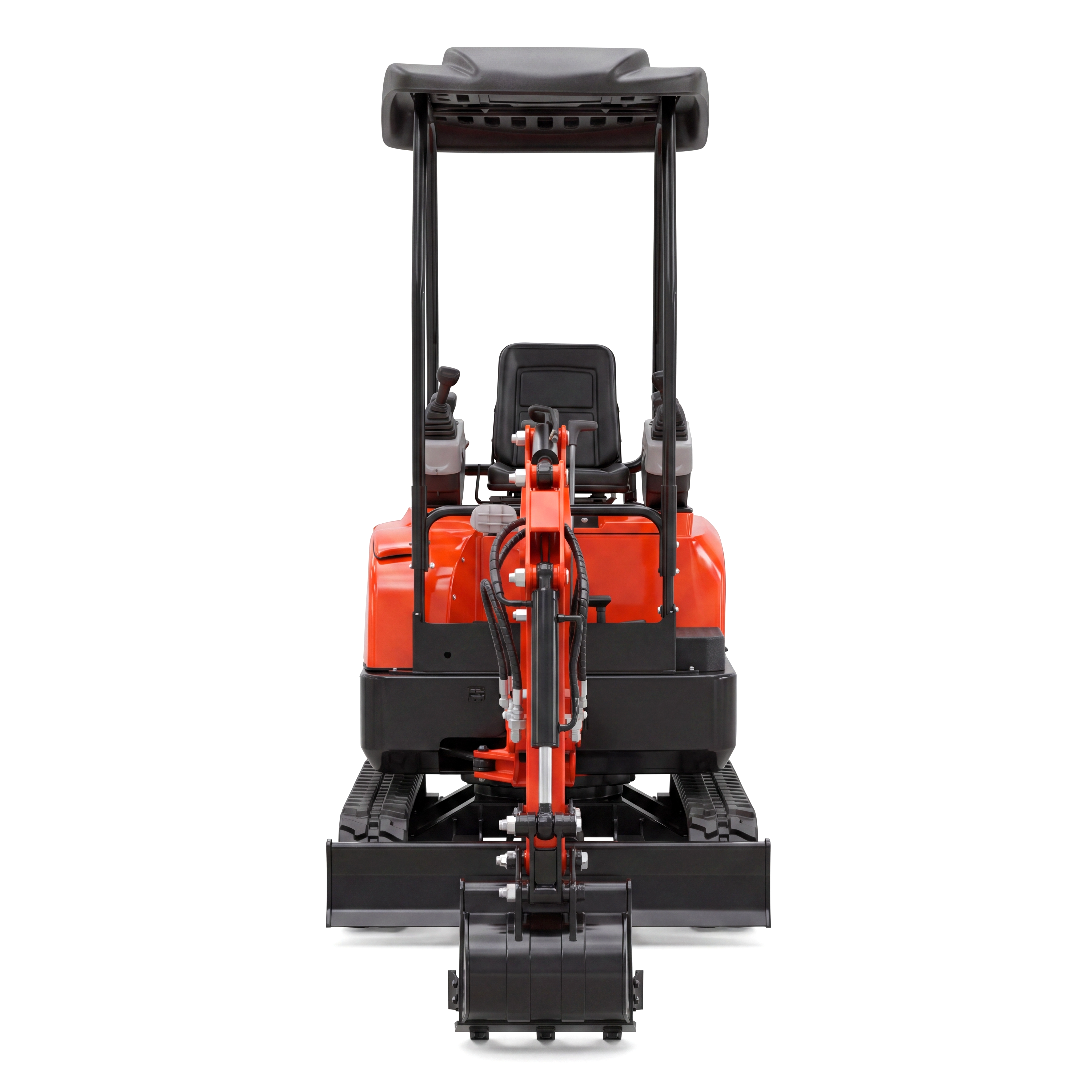

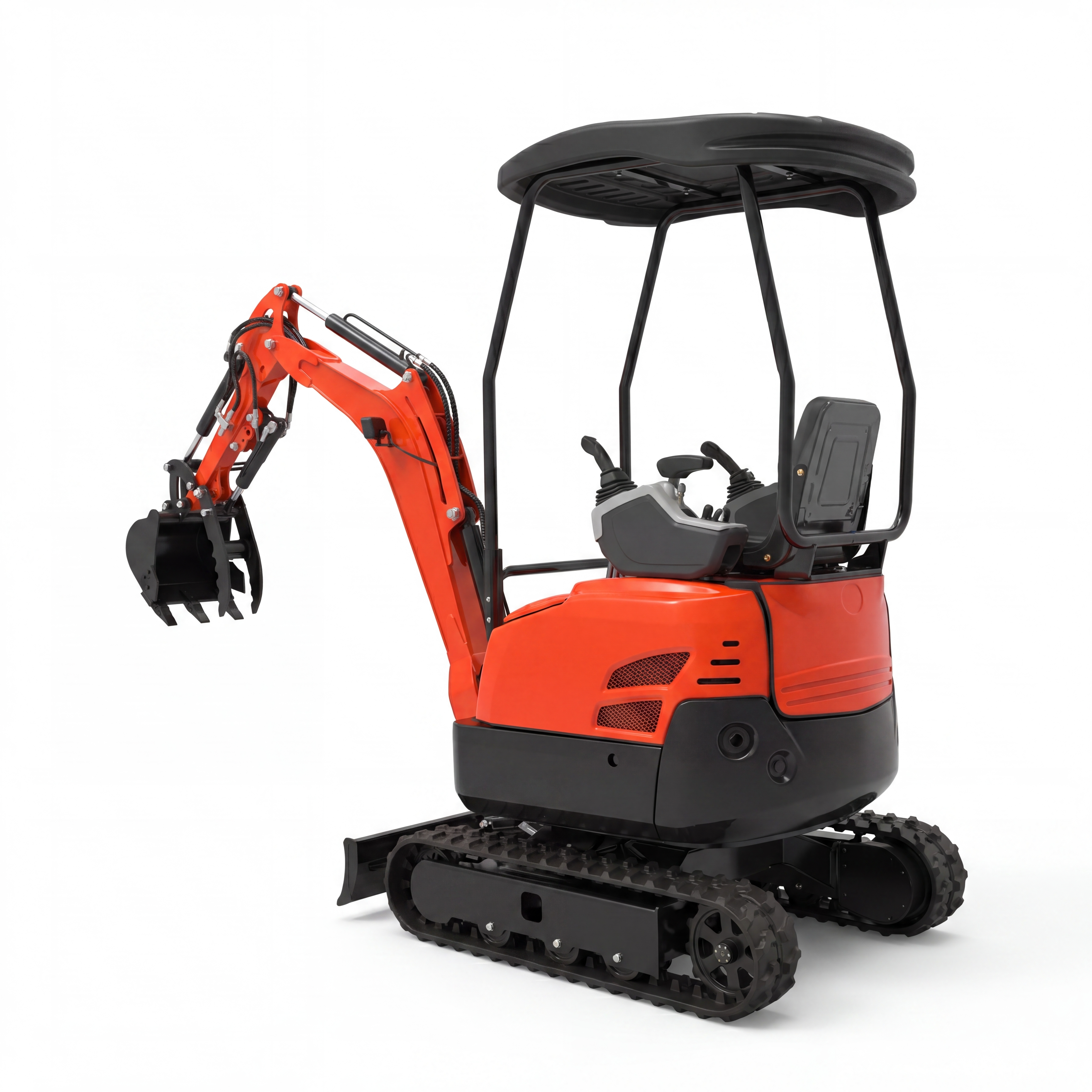

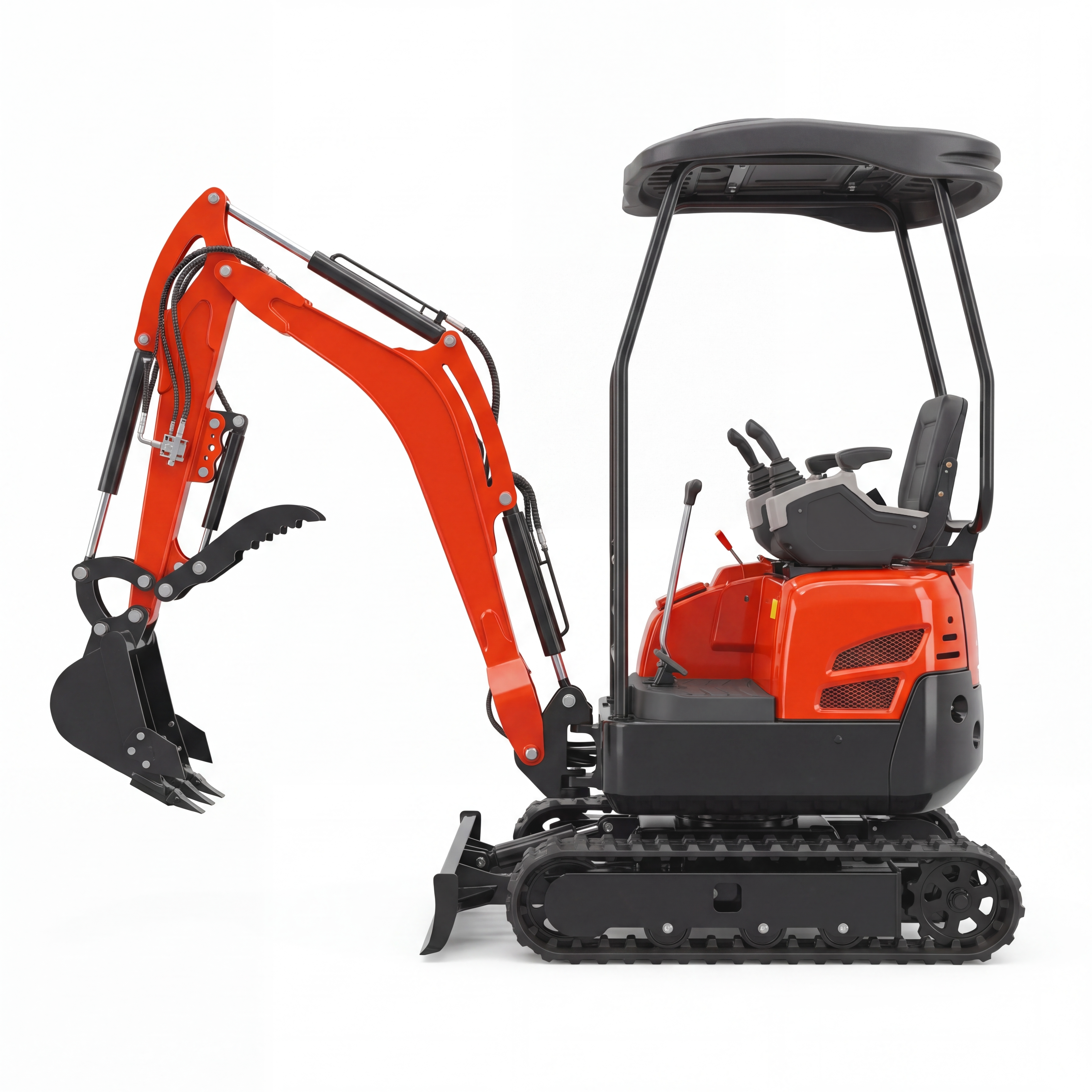

Product Gallery
